FMS - Force Monitoring System

PDF Flyer FMS
go to product page

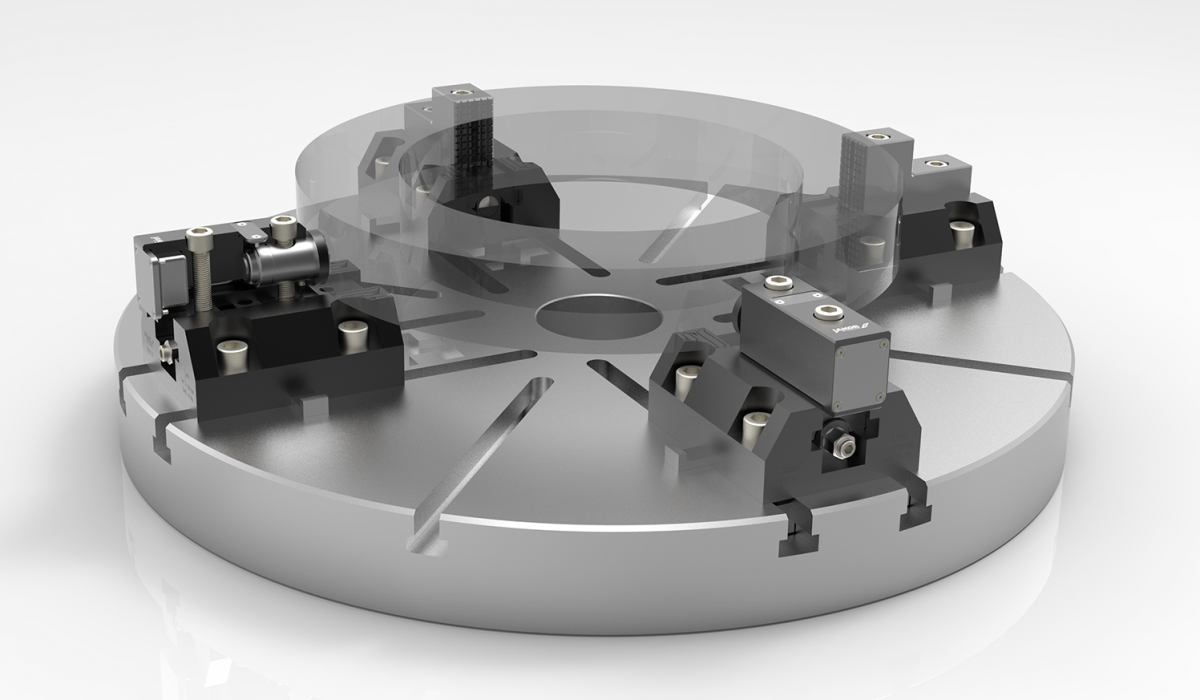

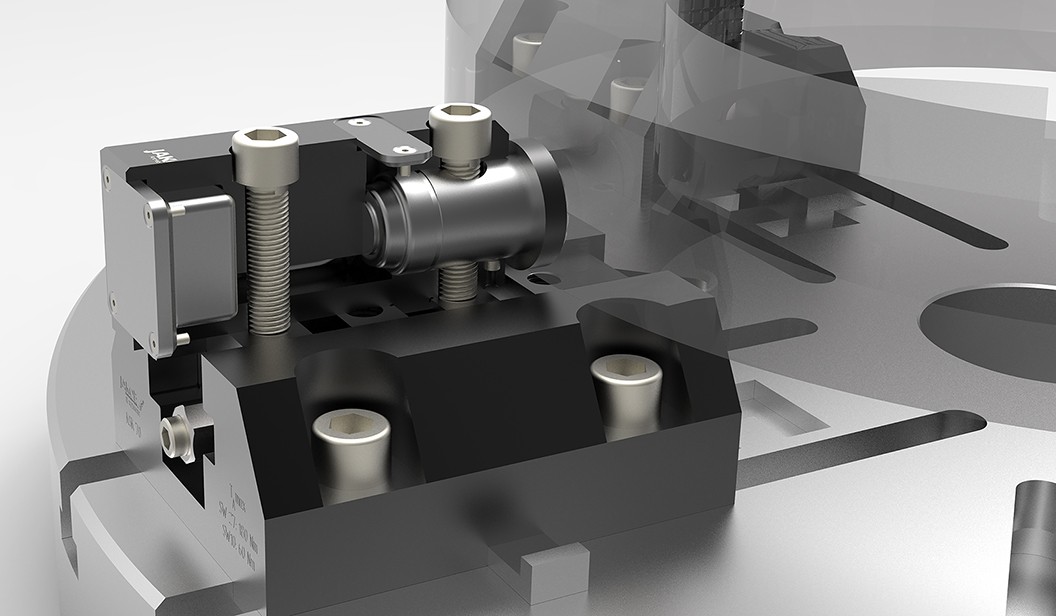

The intelligent clamping jaw FMS from JAKOB Antriebstechnik allows for the constant monitoring of clamping forces not only during machine set-up, but also during actual processing. The claw monitors forces and transmits the telemetrically to a handheld device, a laptop with USB reception stick, or directly to machine control. The holding force of clamping elements is relevant for both safety and quality. The operator can set a threshold clamping force. If clamping force falls below this threshold, an alarm signal is generated, which can, for example, be used as an emergency-stop-signal for a machine.

Advantages of using the FMS:
• monitoring of clamping force during machine set-up
• monitoring of clamping force during processing
• no downtime due to clamping force checking
• higher operational safety due to alert in case of clamping force loss
• higher operational safety during long-term processing
• flexibility thanks to wireless transmission of data

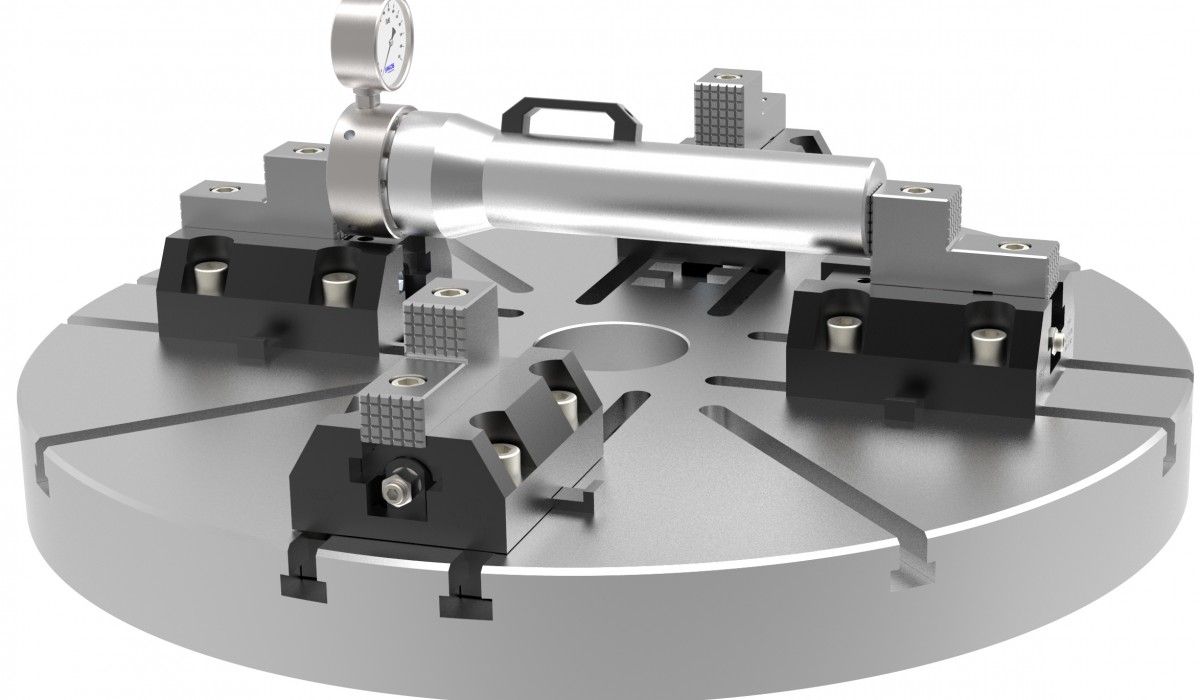

Jaw box KSK

PDF Flyer KSK
go to product page

• sturdy + compact jaw box with power clamping screw
• very high clamping force values with low actuation torque
• double acting for clamping direction external/internal
• operational hexagons for fast and precision adjustment
• clamping jaw mountable in different clamping positions
• weight support through direct apply of the workpiece on jaw possible
• high quality material - heat treatable steel nitrated
• easy operation - high operational safety




HMD hydraulic force measuring system

PDF Flyer HMD
go to product page

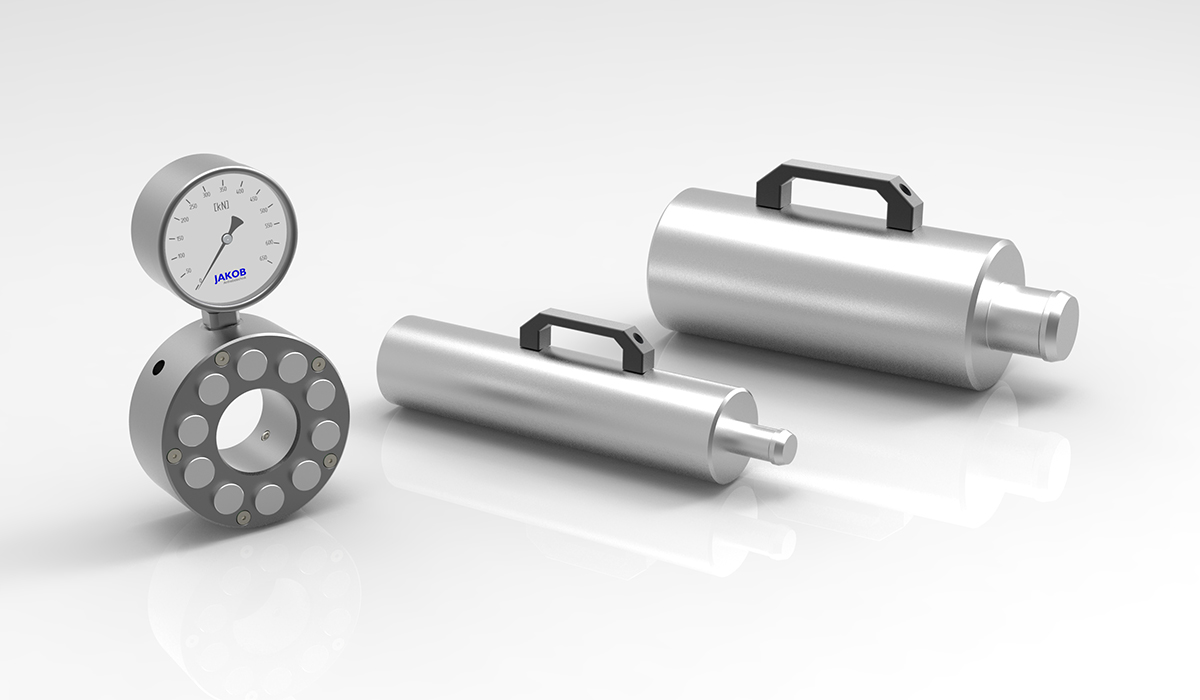

Hydraulic load cells of the HMD series are robust measuring instruments that gauge axial compressive forces with median accuracy. The force is transferred by pressure pistons analogously and via the hydraulic fluid to a manometer with a kN-indicator scale. The measuring system is autarkic so there is no need for external or supplemental power. Therefore, static and dynamic forces can be detected in numerous applications of the entire spectrum of mechanical engineering in an easy and economical way.

Construction features:
• autarkic system - no external power
• heat treated steel - corrosion resistant
• multi piston system - compensation of erroneous angle




Linear system with distance couplings WDS/EKZ

go to distance couplings

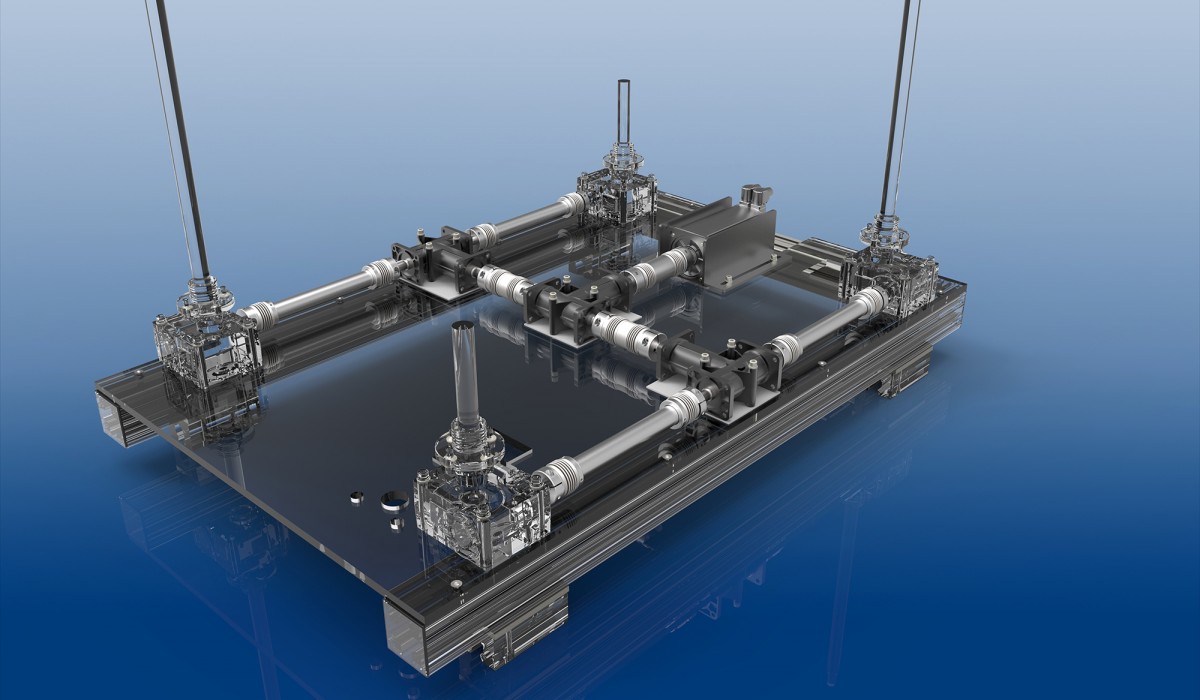

EKZ - Elastomer coupling with intermediate pipe
• customized length up to 3 m
• plug in, backlash free, oszillation dampening
• clamping hub on both sides - slide hub to intermediate pipe
• stainless design (aluminium)
• Torque range: 20 - 1500 Nm
• Shaft diameter: 10 - 70 mm
• temperature range: -30°C up to +90°C



power clamping screw sc

Kraftspannschraube SC in Spannvorrichtung

go to product page
PDF data sheet SC
go to mechanical clamping elements

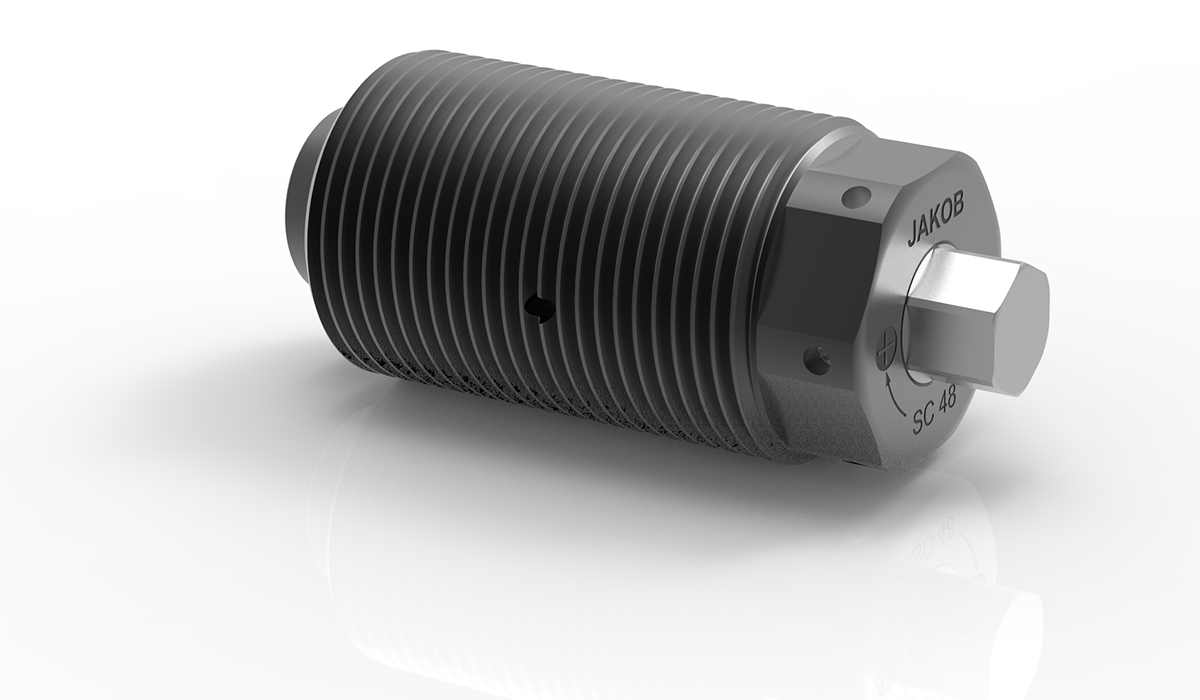

SC – power clamping screw
• wedge mechanism as force booster
• high clamping force - low tightening torque
• high operation safety
• simple manual operation
