torque limiters for direct drives

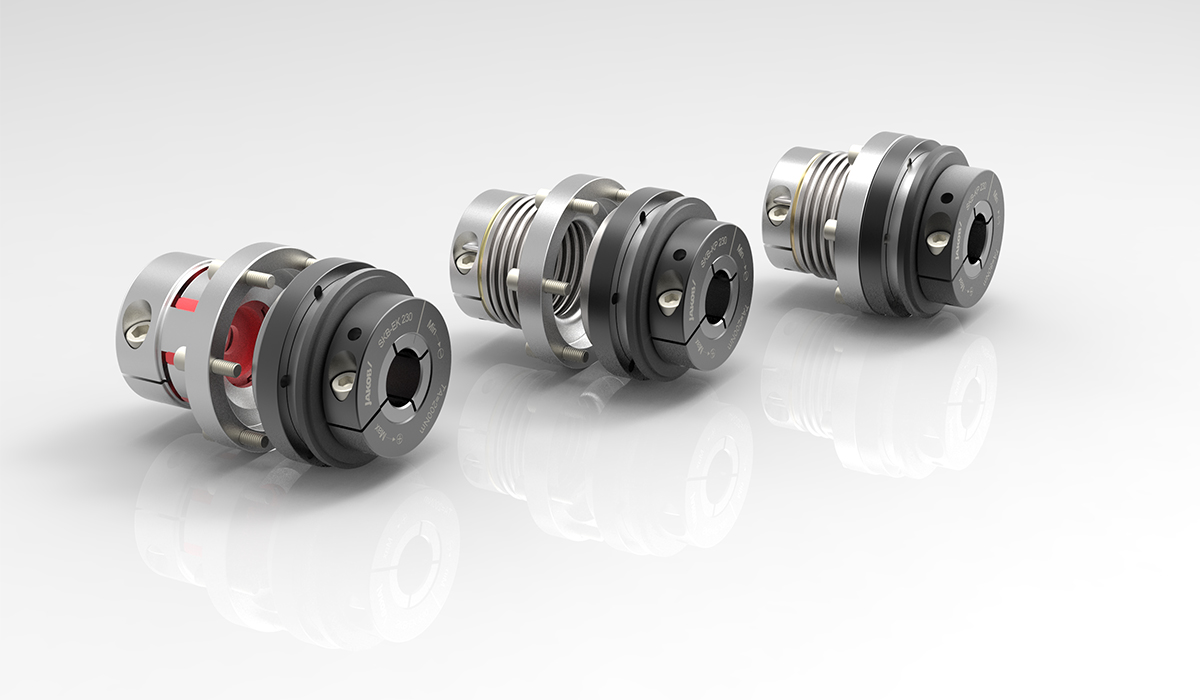

safety couplings or torque limiters for direct drives




torque limiters for direct drives (shaft - shaft - connection)
PDF general
SKB-KP

SKB-KP - with metalbellows coupling attachment

• with radial clamping hub both sides
• simple installation
• compensations of sfaft misalignements - low restoring forces
• Torque range: 2 - 2.000 Nm
• Shaft diameter: D1= 6 - 90 mm / D2= 6 - 100 mm
Data sheet
Specification sheet PDF
DXF-file
3D-step-file

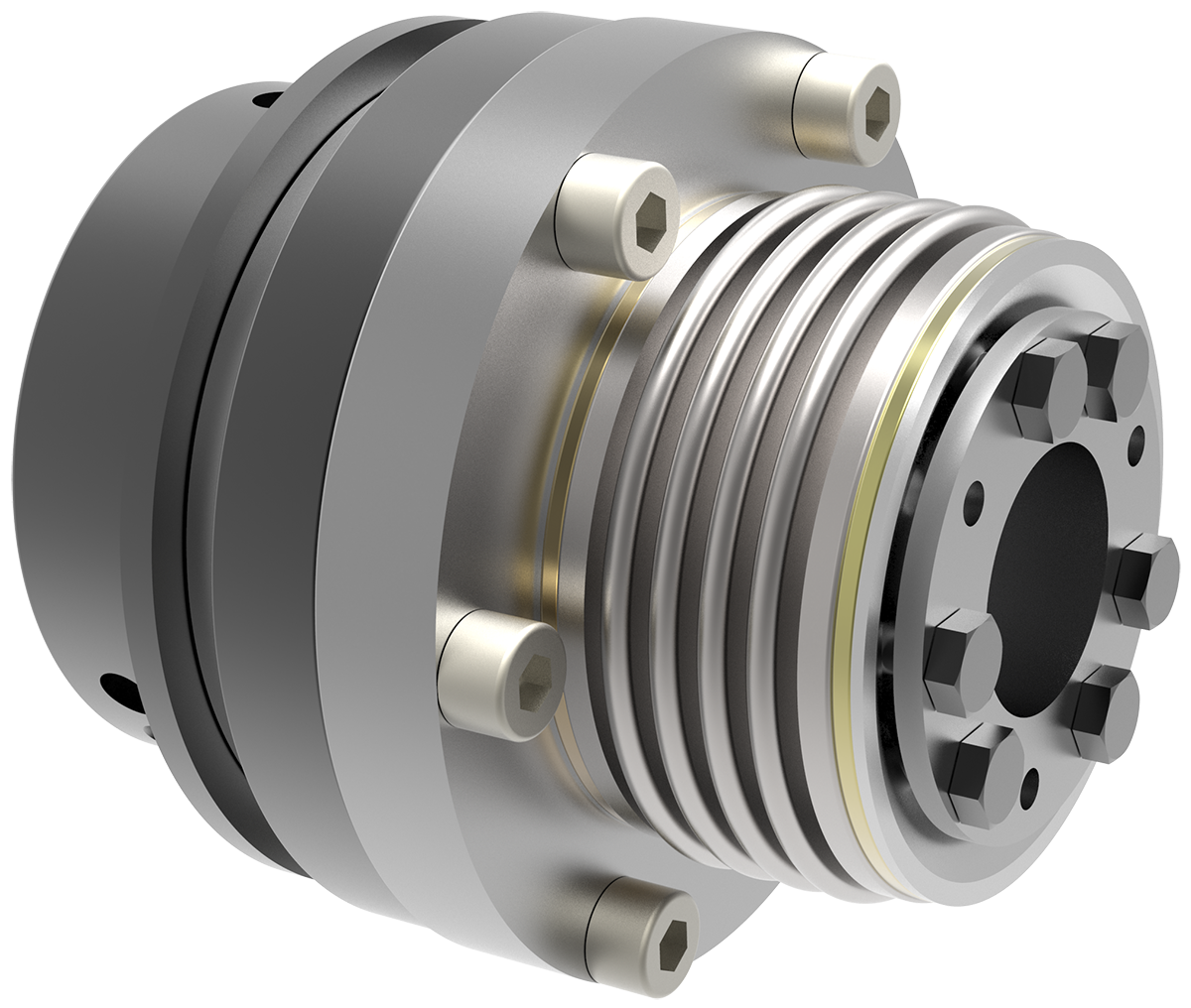

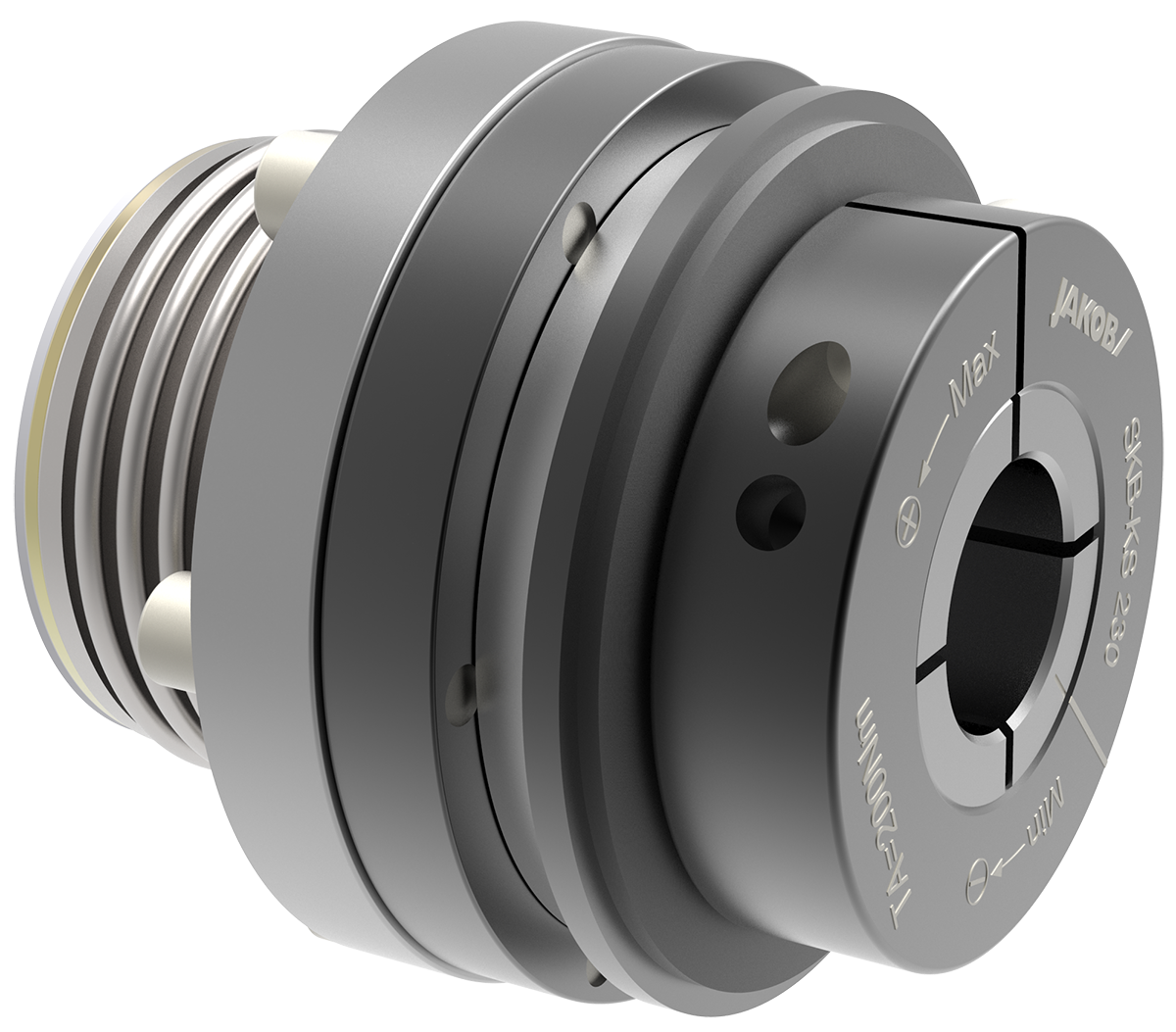

SKB-KS
SKB-KS - with metalbellows coupling attachment
• easy to install clampin ring hub
• bellowside with conical clamping hub for small shaft diameters
• compensation of misalignments - low restoring forces
• Torque range: 2 - 2000 Nm
• Shaft diameter: D1= 6 - 70 mm / D2= 5 - 100 mm
Data sheet
Specification sheet PDF
3D-step-file

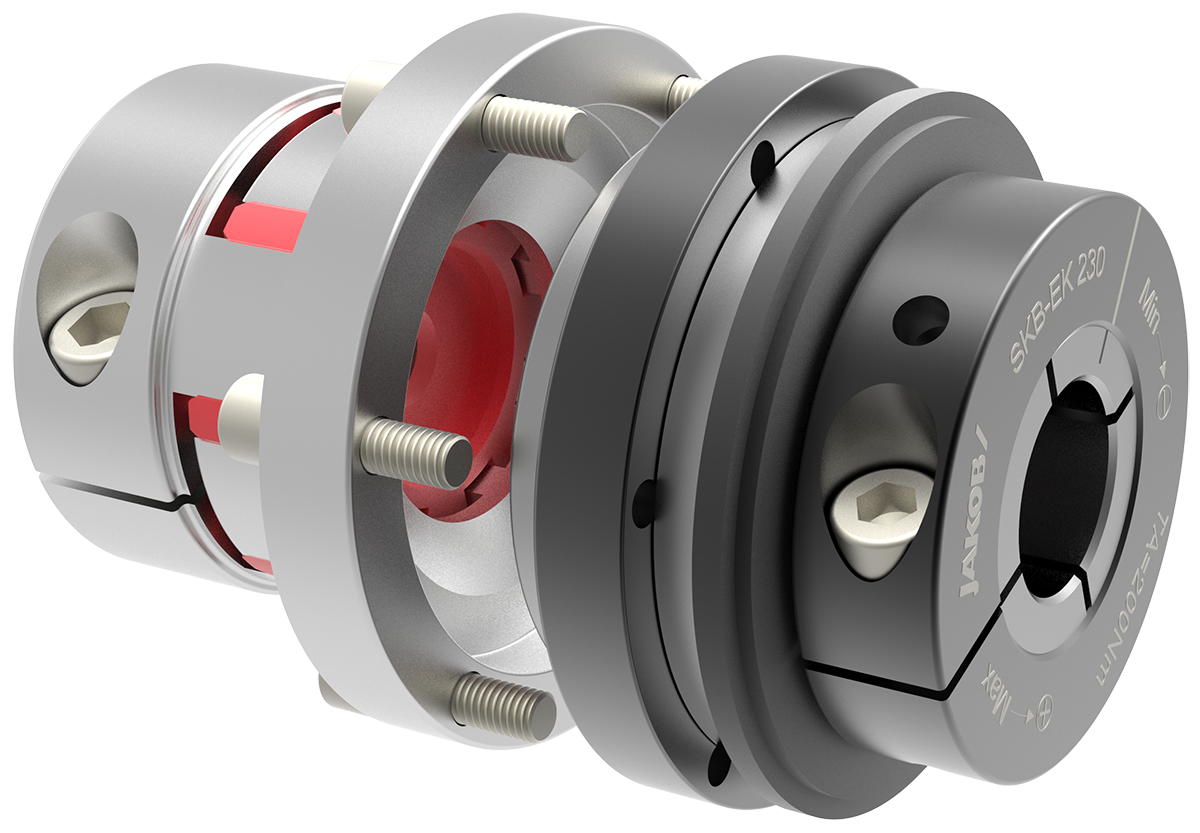

SKB-EK
SKB-EK - with elastomer coupling attachment
• with radial clamping hub on both sides
• easy to install - plug in design
• compensation of shaft misalignments - oscillation dampening
• Torque range: 2 - 2.000 Nm
• Shaft diameter: D1= 8 - 90 mm / D2= 6 - 100 mm
Data sheet
Specification sheet PDF
DXF-file
3D-step-file

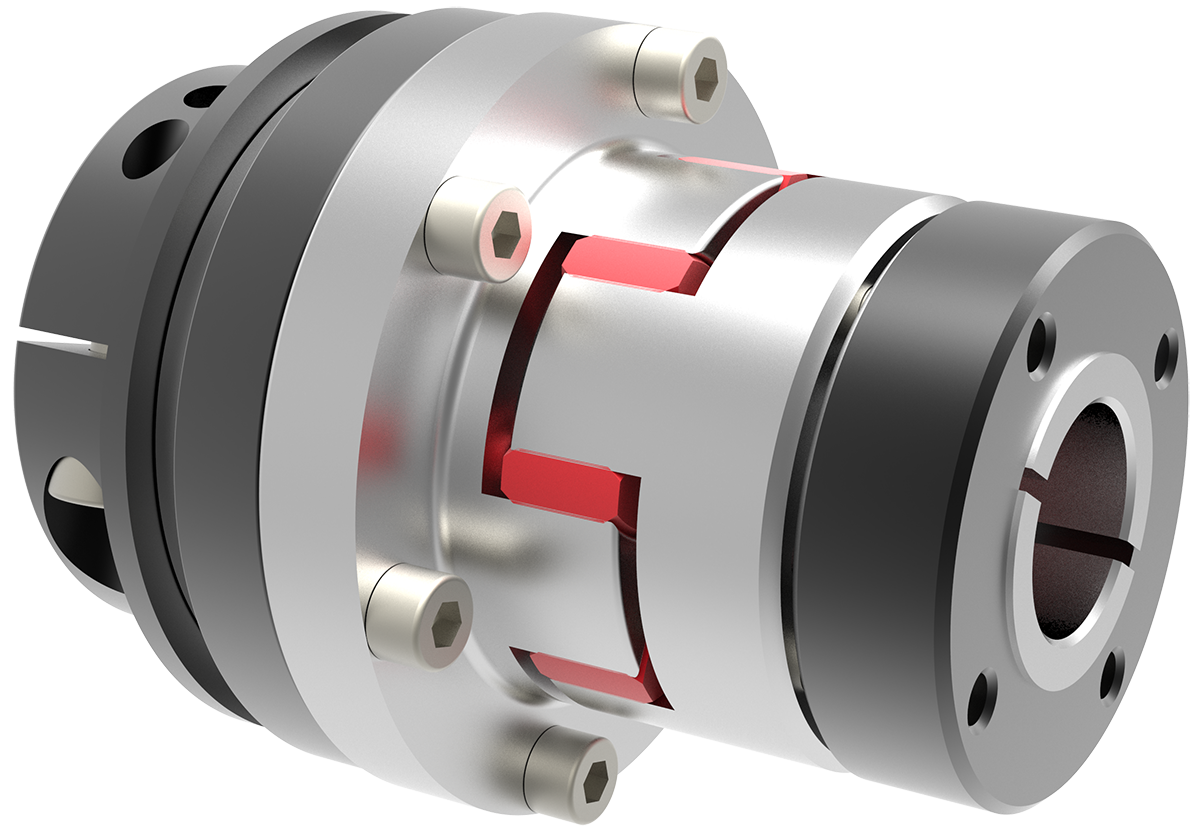

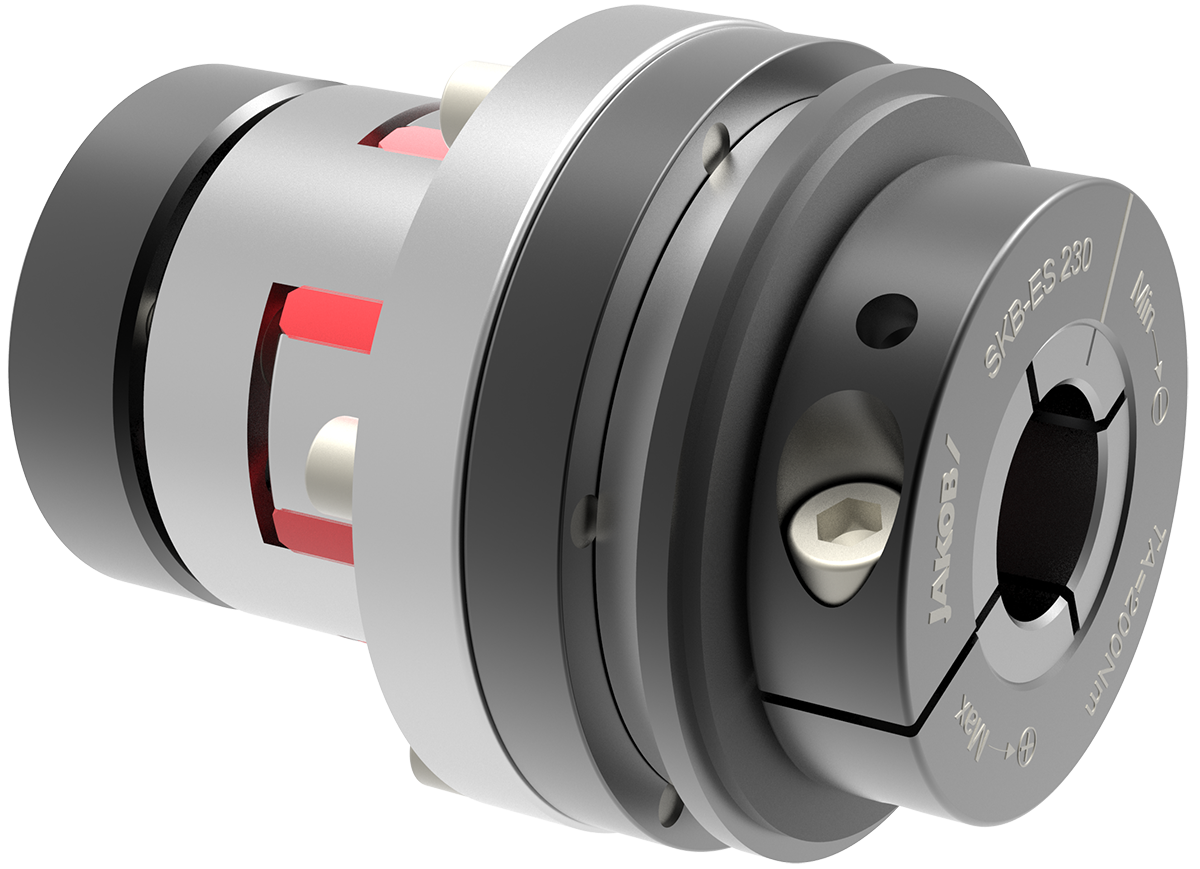

SKB-ES
SKB-ES - with elastomer coupling attachment
• easy to install clampin ring hub
• elastomer attachment with conical clamping hub for small shaft diameters
• plug in, blind assembly possible
• backlash free, flexible, robust, oscillation dampening
• Torque range: 2 - 2000 Nm
• Shaft diameter: D1= 9 - 85 mm / D2= 6 - 100 mm
Data sheet
3D-step-file
SKY-KP
SKY-KP with metalbellows coupling attachment
• with conical clamping hub for small shaft diameters
• bellowside with EASY- clamping hub
• compensation of misalignments - low restoring forces
• Torque range: 0,5 - 2000 Nm
• Shaft diameters: D1= 3 - 85 mm / D2= 4 - 65 mm
Data sheet
Specification sheet PDF
3D-step-file
SKY-KS

SKY-KS - with metalbellows coupling attachment

• with conical clamping hub on both sides
• compensations of shaft misalignments - low restoring forces
• high balance quality - for small shaft diameters
• Torque range: 0.5 to 9000 Nm
• Shaft diameter: D1= 3 - 130 mm / D2= 4 - 120 mm
Data sheet
Specification sheet PDF
DXF-file
3D-step-file
SKY-EK
SKY-EK with elastomer coupling attachment
• with conical clamping hub for small shaft diameters
• elastomer coupling with radial clamping hub, plug in design
• backlash free, flexible - robust, oscillation dampening
• Torque range: 2 - 2000 Nm
• Shaft diameters: D1=8 - 90 mm / D2=5 - 65 mm
Data sheet
Specification sheet PDF
3D-step-file
SKY-ES

SKY-ES - with elastomer coupling attachment

• with conical clamping hub on both sides
• for high speed operation - for small shaft diameters
• compensation of shaft misalignments - plug in design - oscillation dampening
• Torque range: 2 - 2.000 Nm
• Shaft diameter: D1= 9 - 85 mm / D2= 6 - 65 mm
Data sheet
Specification sheet PDF
DXF-file
3D-step-file
SKW-KP

SKW-KP - with metalbellows coupling attachment

• with keyway connection on both sides
• with integrated grooved ball bearing for high bearing reaction
• cost-efficient execution
• Torque range: 2 - 9.000 Nm
• Shaft diameter: D1= 6 - 140 mm / D2= 6 - 110 mm
Datasheet
Specification sheet PDF
DXF-file on request
3D-step-file
SKW-EK
SKW-EK with elastomer coupling attachment
• with easy keyway connection
• elastomer coupling with radial clamping hub, plug in design
• backlash free, flexible, robust, oscillation dampening
• Torque range: 2 - 2000 Nm
• Shaft diameters: D1=8 - 90 mm / D2=6 - 90 mm
Data sheet
3D-step-file
go to torque limiters for indirect drives
go to special solutions
  • safety couplings for direct drives
    safety couplings SKB-EK | SKB-KP | SKB-KP
