Sectional Rail Coupling - Series PKH / PKV

JAKOB Antriebstechnik offers Sectional Rail Couplings that can easily be retrofitted to any
current Gripper Rail profile. The automatic couplings are applied pneumatically and even
close a 5mm-gap between the active and the passive components during the de-clutching.
The kinetic clamping ensures the high stiffness and high precision of the connection. The
transmission of the clamping force can occur either manually or pneumatically.

Construction features:
• self-locking, kinetic wedge-clamping
• pre-centering with alignment pins
• electrical clamping-condition control
• available in steel and aluminum designs
Video Clip Series PKV
Video Clip Series PKH

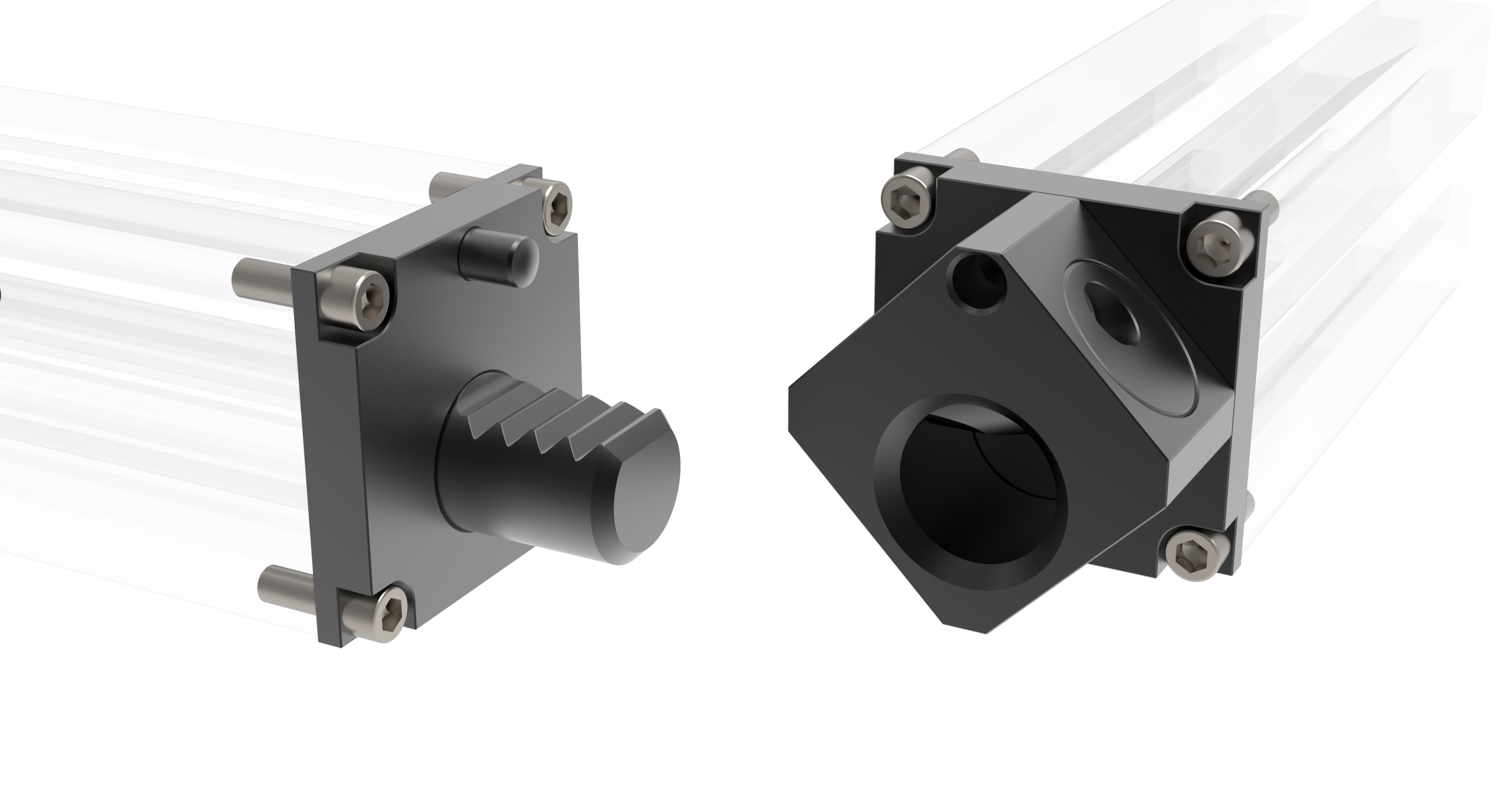

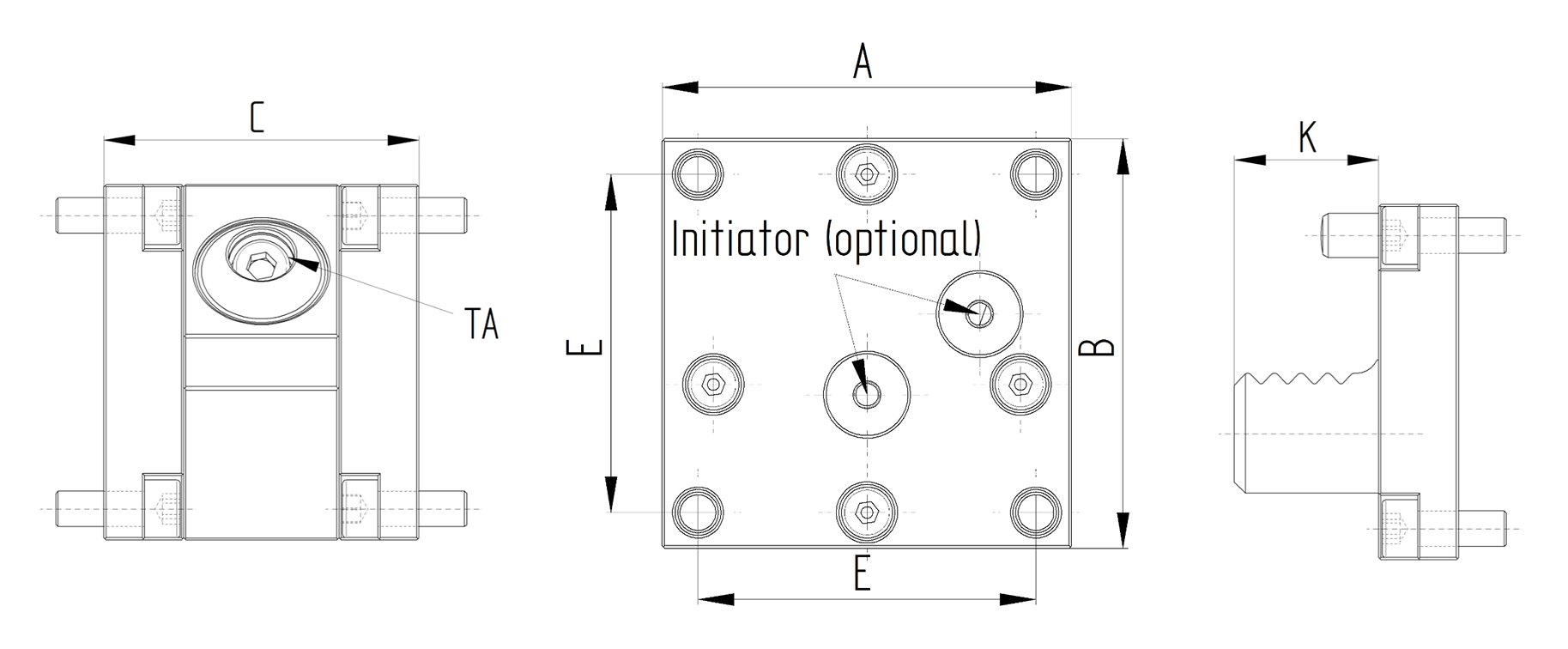

Sectional Rail Coupling - Series PVH-M

• Easy adaptation to different profile cross-sections (A x B)
• horizontal coupling with high stiffness
• manual coupling with high clamping forces and self-locking mechanism
Data Sheet PVH-M PDF

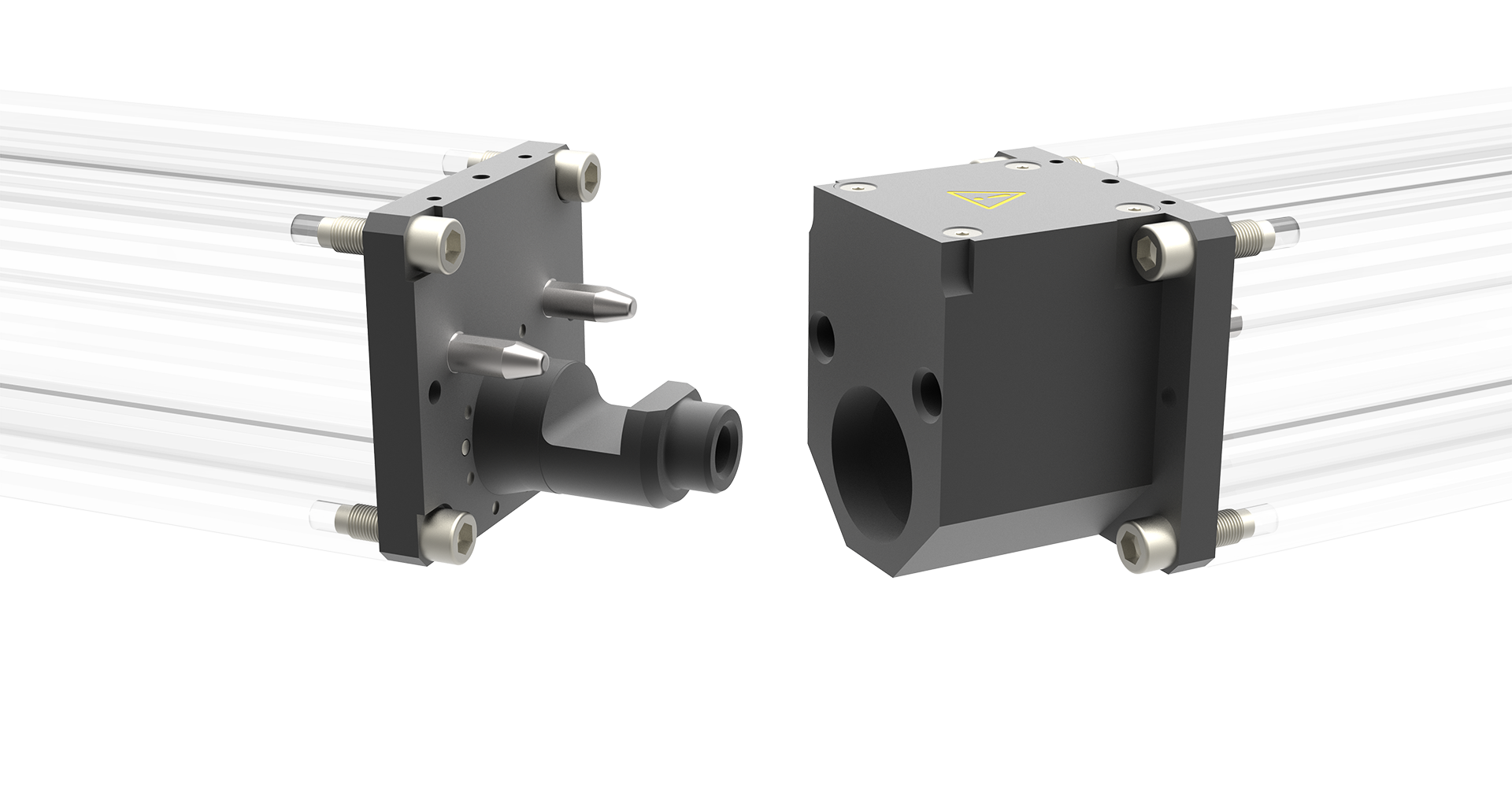

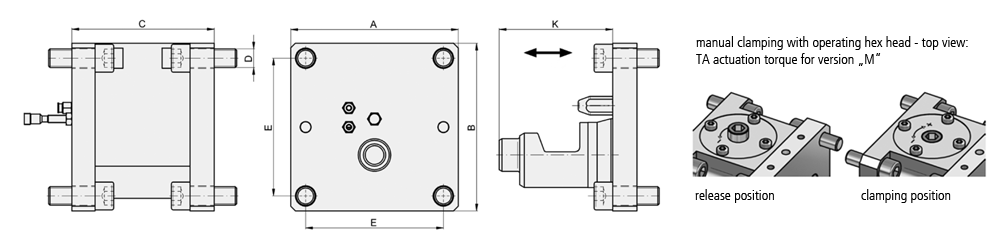

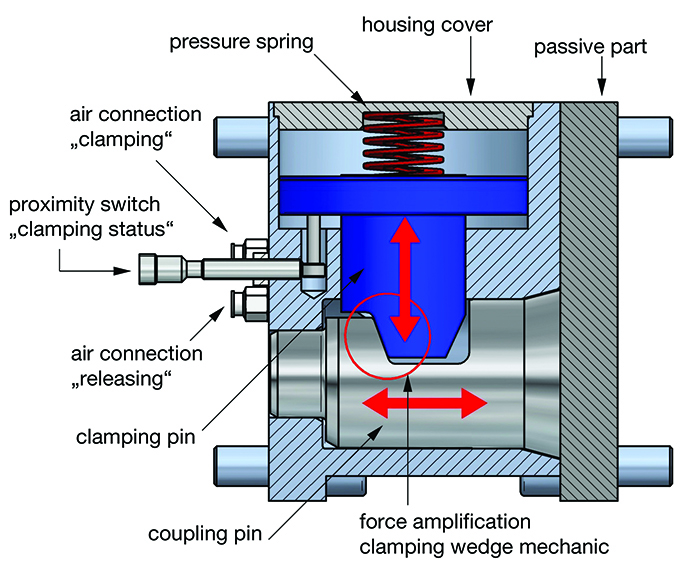

Sectional Rail Coupling - Series PKH-P

• horizontal coupling with high precision and stiffness
• automatic clamping via pneumatic / short change-over
Data Sheet PKH PDF
3D-step-file
Specification sheet PDF
Operating instructions

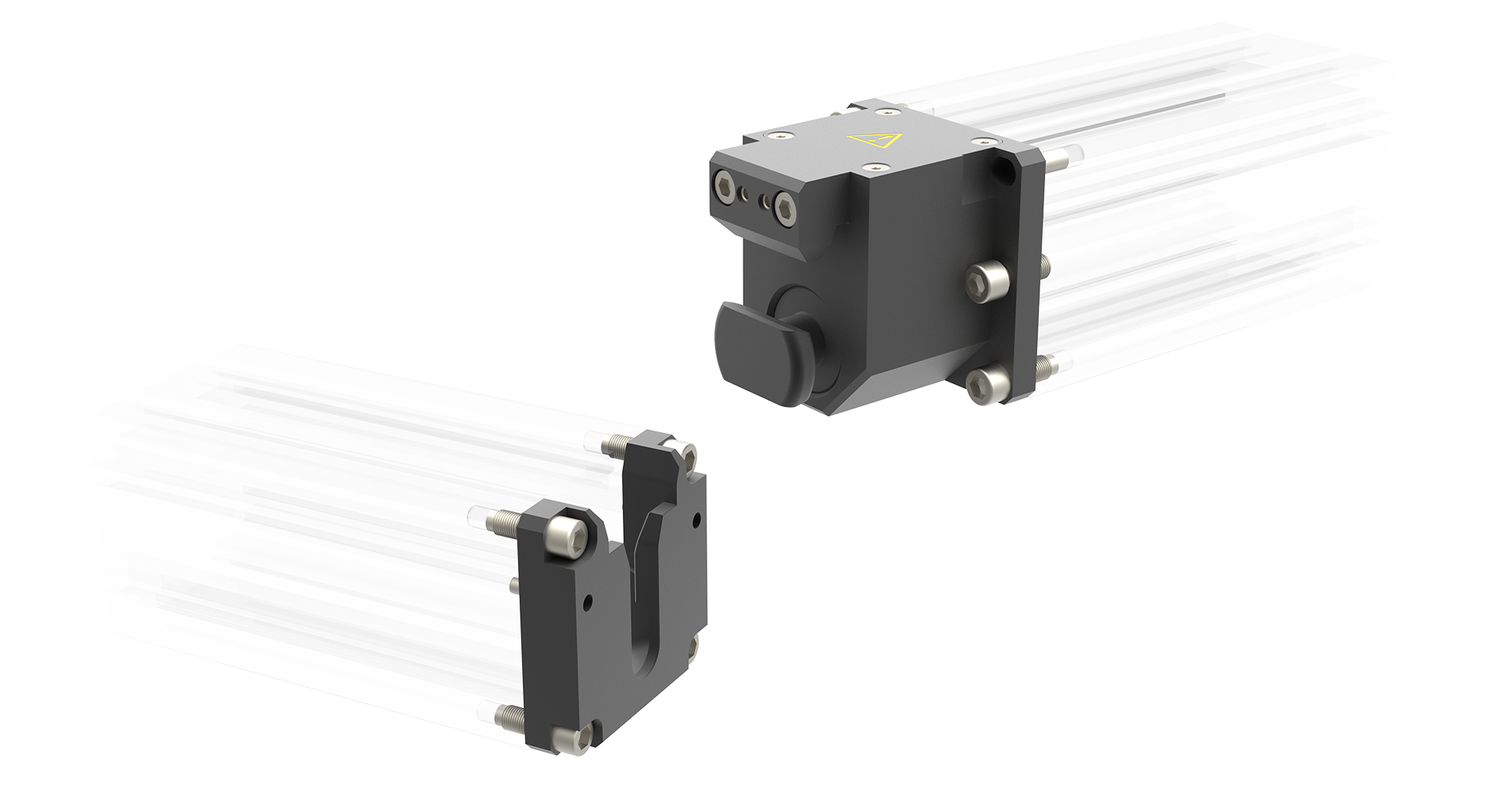

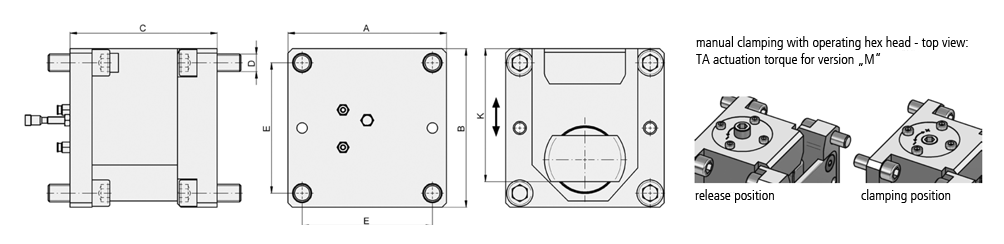

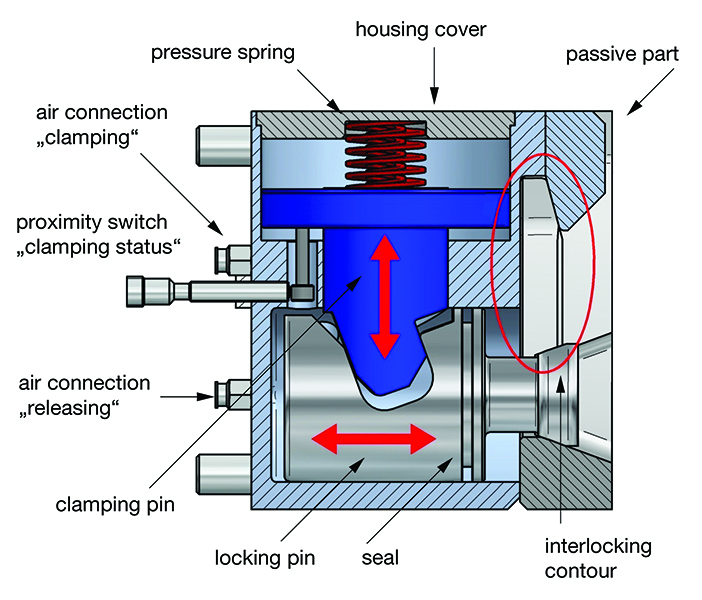

Sectional Rail Coupling - Series PKV-P

• vertical coupling with high precision and stiffness
• automatic clamping with pneumatic with short change-over
Data Sheet PKV PDF
3D-step-file
Specification sheet PDF
Operating instructions

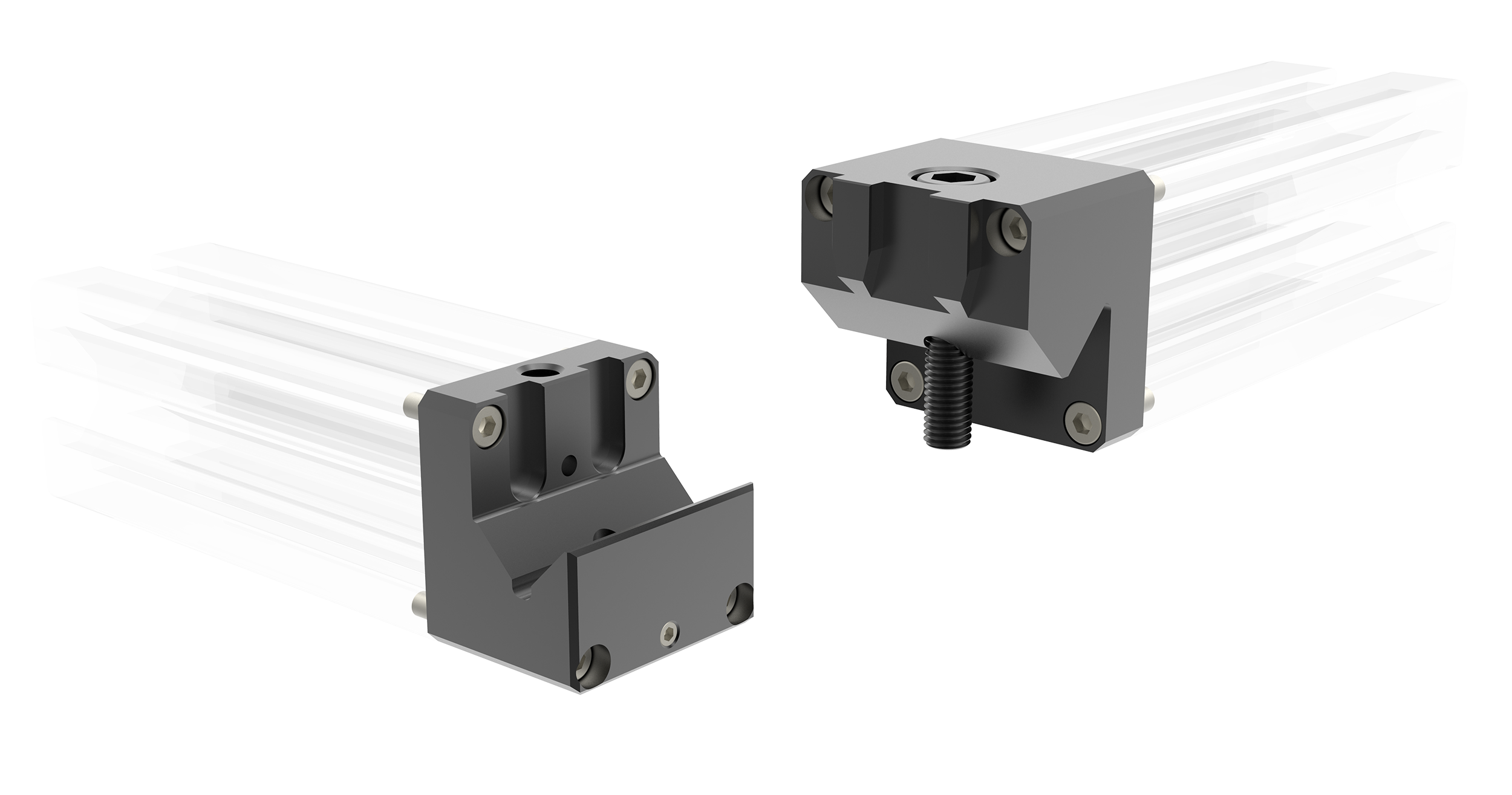

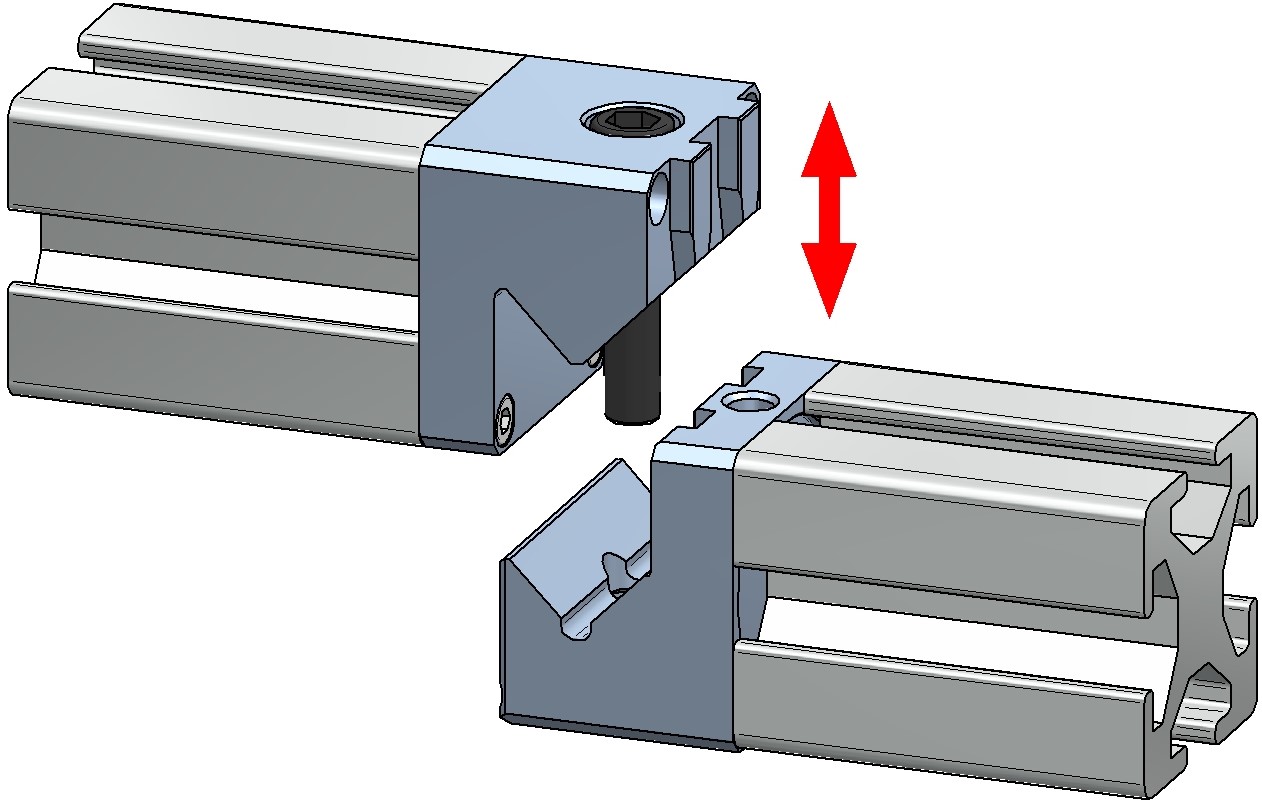

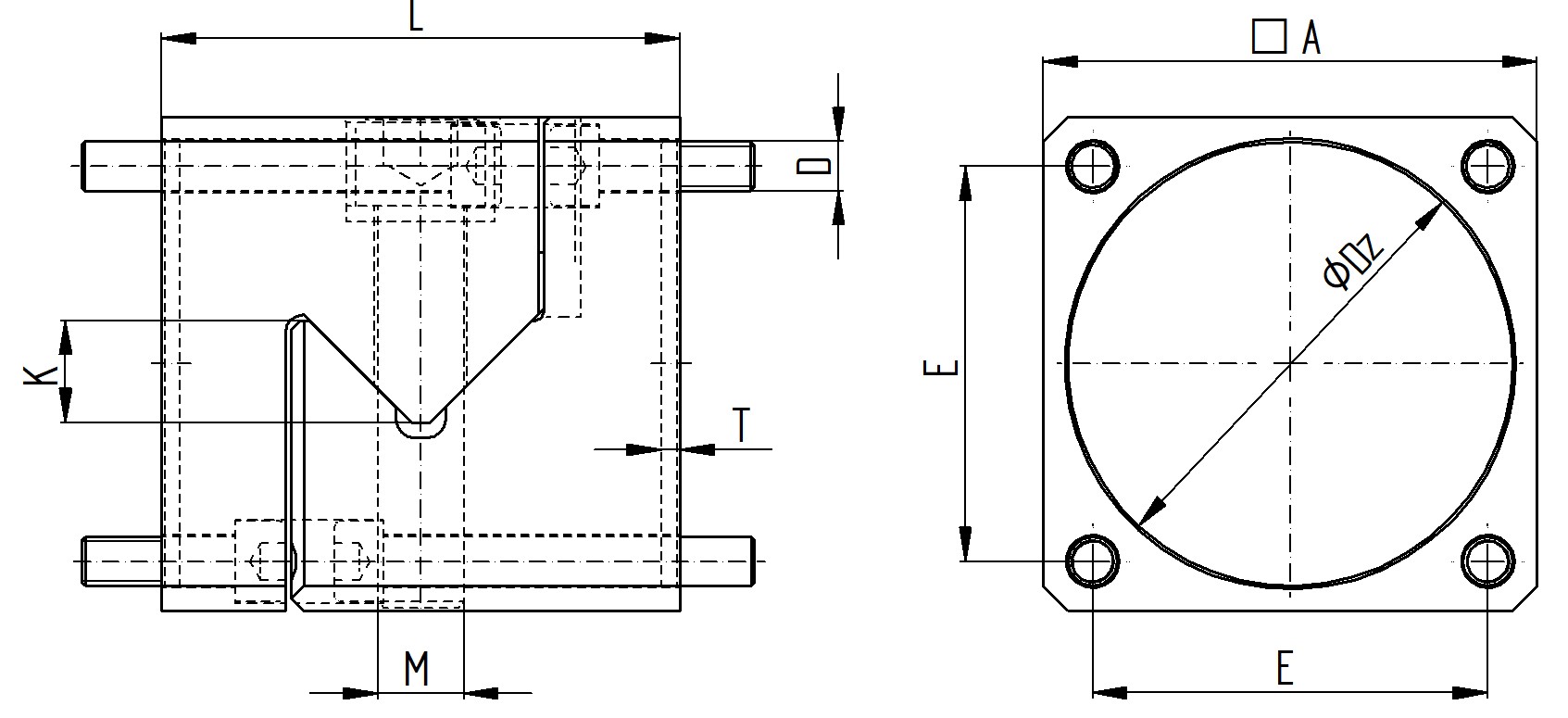

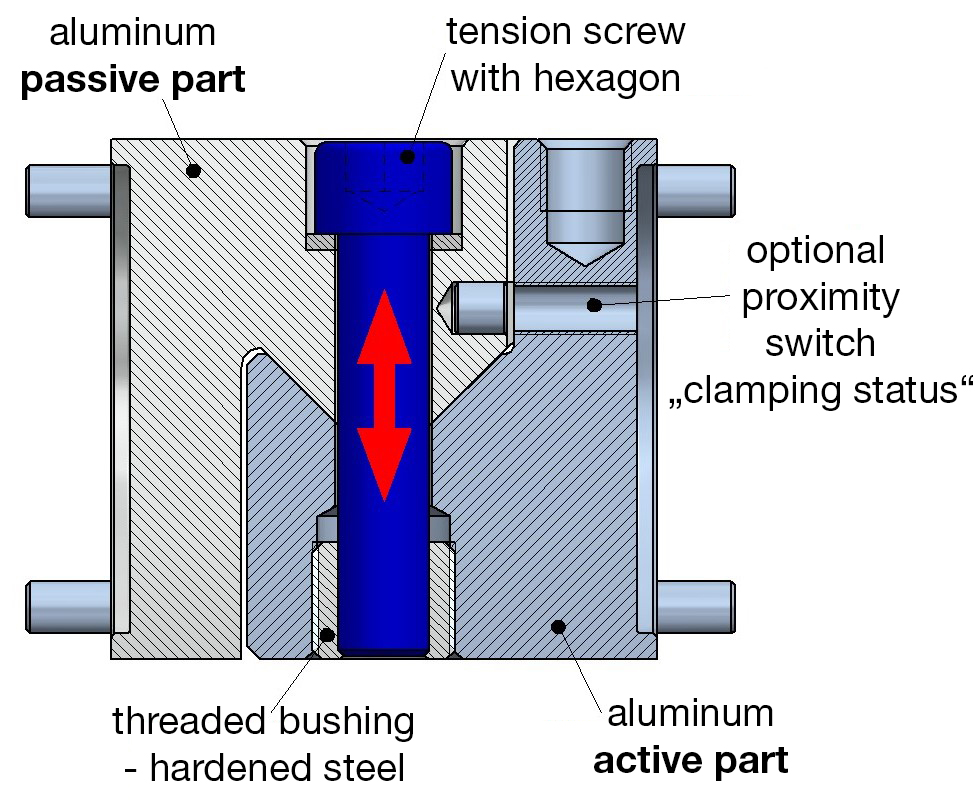

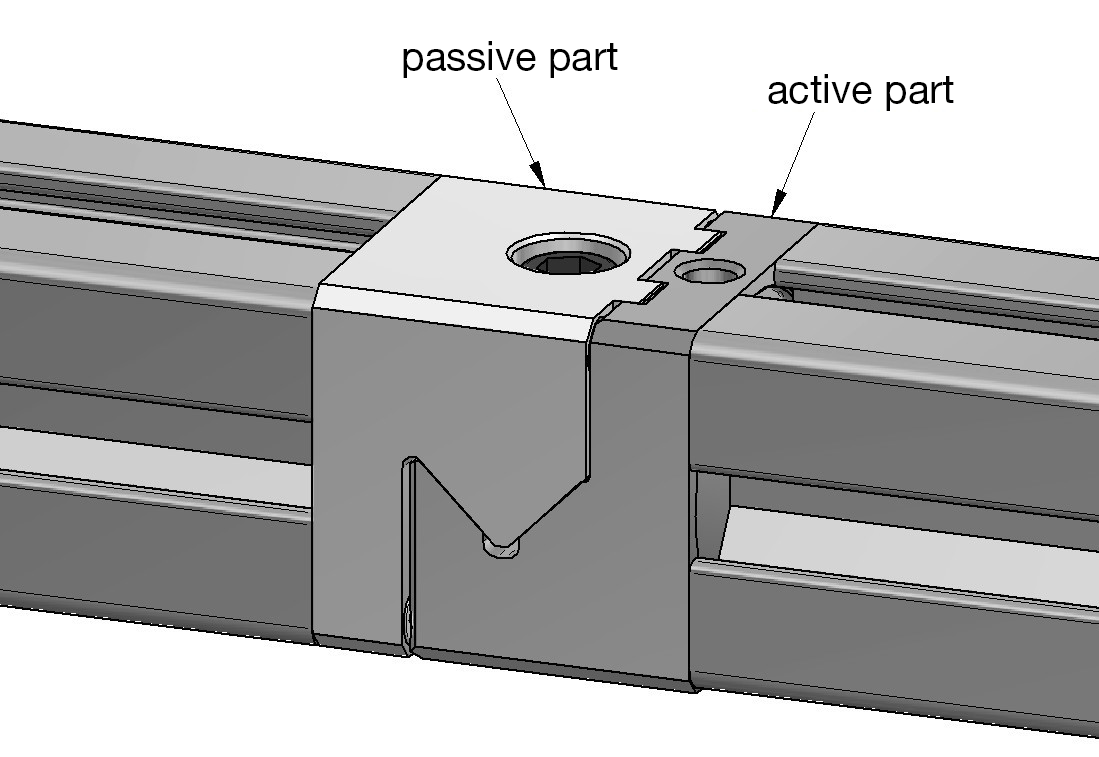

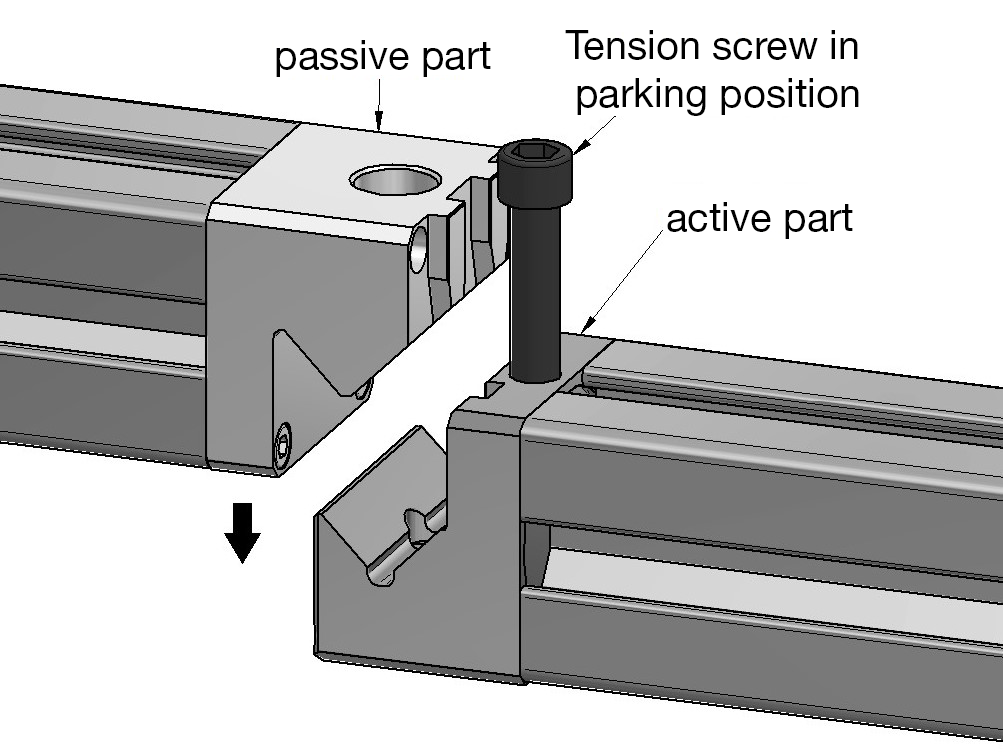

Sectional Rail Coupling - Series PKP

• vertical linear coupling for automatic clamping
• aluminum version
Data Sheet PKP PDF
Specification sheet PDF
