Flanges for welding

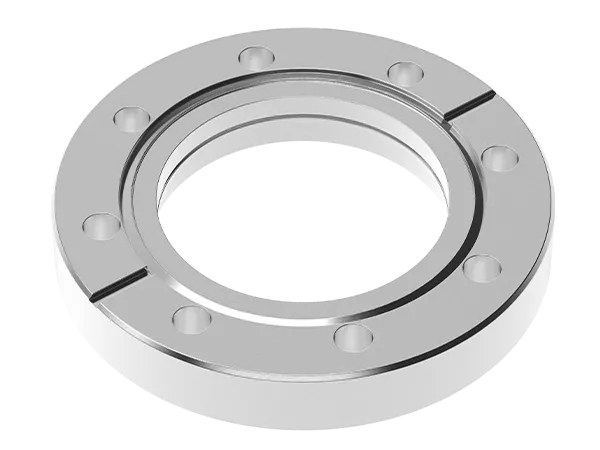

Product photo: Flat stainless steel flange with holes CF area for welding.

Weld-on flange fixed, made of stainless steel (1.4301)

Pressure range:up to 1*10^-12 hPa
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

Product photo: Flat stainless steel flange with threaded holes CF area for welding.

Weld-on flange fixed with thread, made of stainless steel (1.4301)

Pressure range:up to 1×10^-12 hPa
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

Product photo: Stainless steel pipe with CF flange for welding.

Weld-on flange with pipe socket, fixed

Surface of weld seam: polished
Other pipe dimensions and threads on request
Tightness: ≤1×10^-11 Pa m3/s
Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

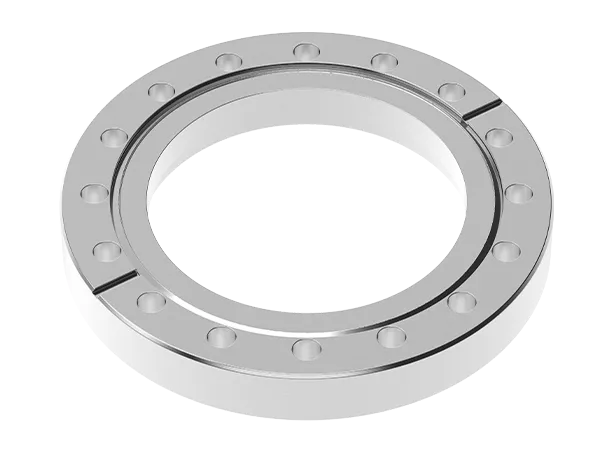

Product photo: Flat, rotatable stainless steel flange with holes in CF area for welding.

Weld-on flange rotatable

Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

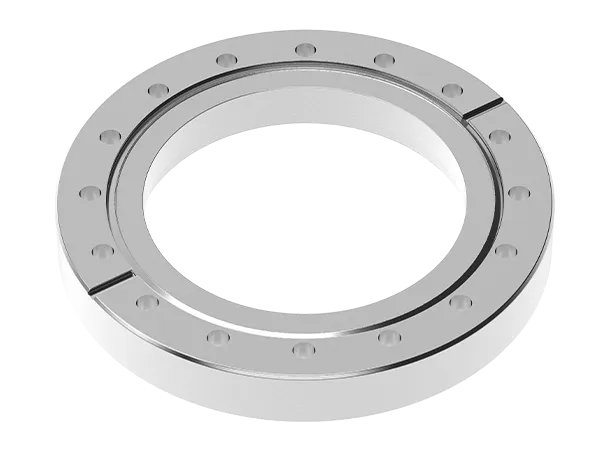

Product photo: Flat, rotatable stainless steel flange with threaded holes CF area for welding.

Weld-on flange rotatable with thread

Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

Product photo: Stainless steel tube with rotatable CF flange for welding.

Weld-on flange with pipe attachment rotatable

Surface of weld seam: polished
Other pipe dimensions on request
Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
Other pipe dimensions and threads on request
according to DIN ISO 2768-mK

Data sheet
