Small Flange Fasteners

Product photo: Small flange (KF) clamping ring aluminium with wing nut

Standard clamping ring made of die-cast aluminium

Suitable for use with O-rings
Quick assembly and replacement of small flange connections
According to standard DIN 28403 and ISO 2861
Temperature range: -196°C to +200°C

Data sheet

Product photo: Clamping ring aluminium for connecting ISO-KF

Clamping ring with tightening strap made of aluminium

Suitable for use with O-rings
Opening the small flange connection only possible with a tool
Compact design
Screw: external hexagon, SW 7mm
Temperature range: 0°C to +100°C

Data sheet

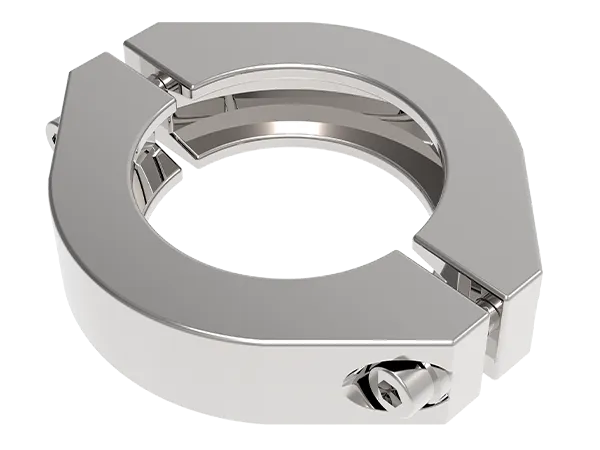

Product photo: Two-part KF clamping ring made of stainless steel with hexagon socket screw for light metal seals.

Clamping ring for metal sealing made of stainless steel

Suitable for use with o-rings and metal seals
Screw: Hexagon socket, A2, 70
Temperature range: -196°C to +300°C

Data sheet

Product photo: Bracket with screw for fastening KF to base plate.

Single claw clamp made of aluminium with galvanized screw

Suitable for use with O-rings and metal seals
For mounting on a base plate
Temperature range: -196°C to 200°C

Data sheet
