distance couplings for special solutions

distance couplings for special solutions

Contact us for further information
Distance coupling Simple-Flex
• up to 6m length without additional intermediate storage
• no compensating coupling elements necessary
• Conical clamping hub, symmetrical on both sides, or
Optional easy-to-assemble half-shell hub
• Two tube sizes up to torques of 1000Nm
• Temperature range up to + 100 ° C

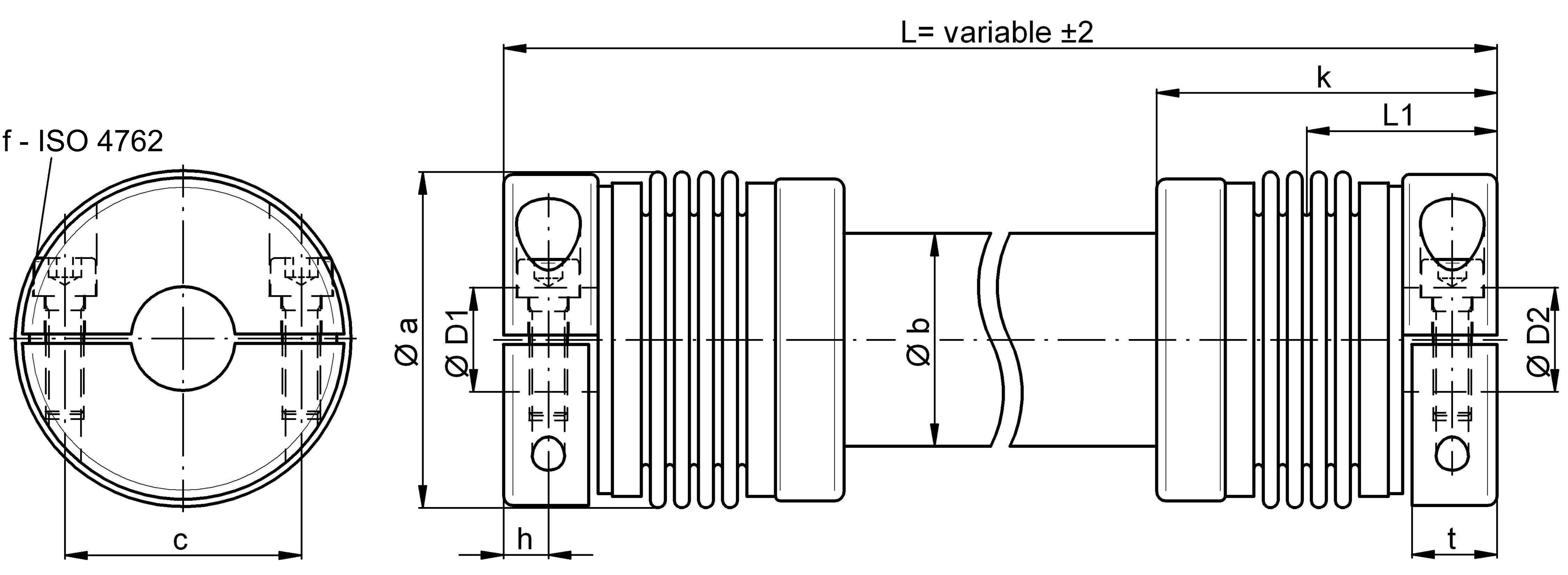

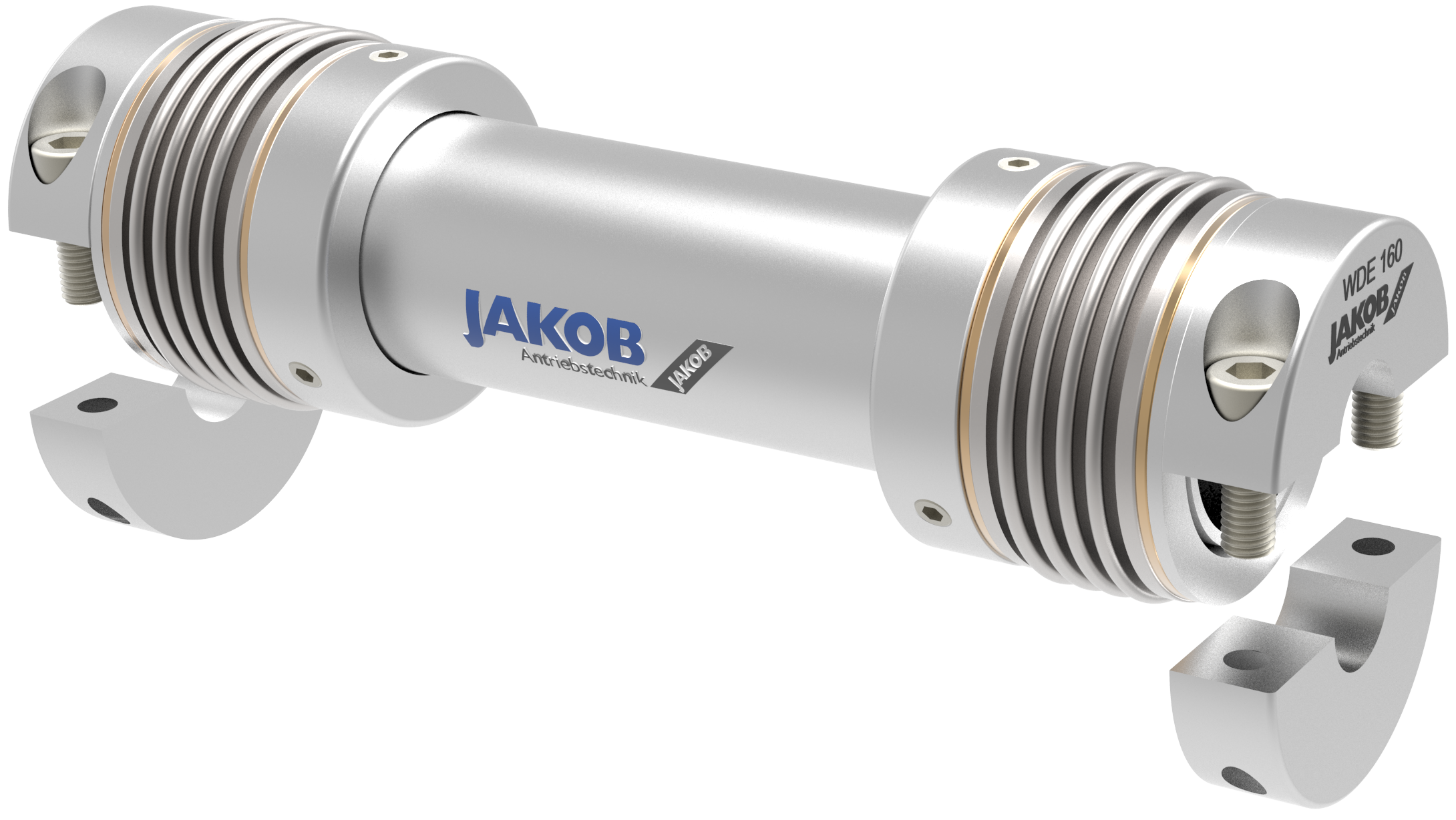

WDE - Metal bellows coupling with intermediate pipe
• variable length up to 3 m
• Low- Cost- Version with reduced operating parameters
• backlash free, exact torque transfer
• very easy to fit with splitted hub design
• Torque range: 40 - 500 Nm
• Shaft diameter: 14 - 70 mm
• temperature range: -40°C up to +90°C
Data sheet PDF
Specification sheet PDF
3D-step-file
with CFK pipe
• stainless steel design
• CFK intermediate pipe
• conical or flange hub
• according to customized specification
• on request !
go to standard series
