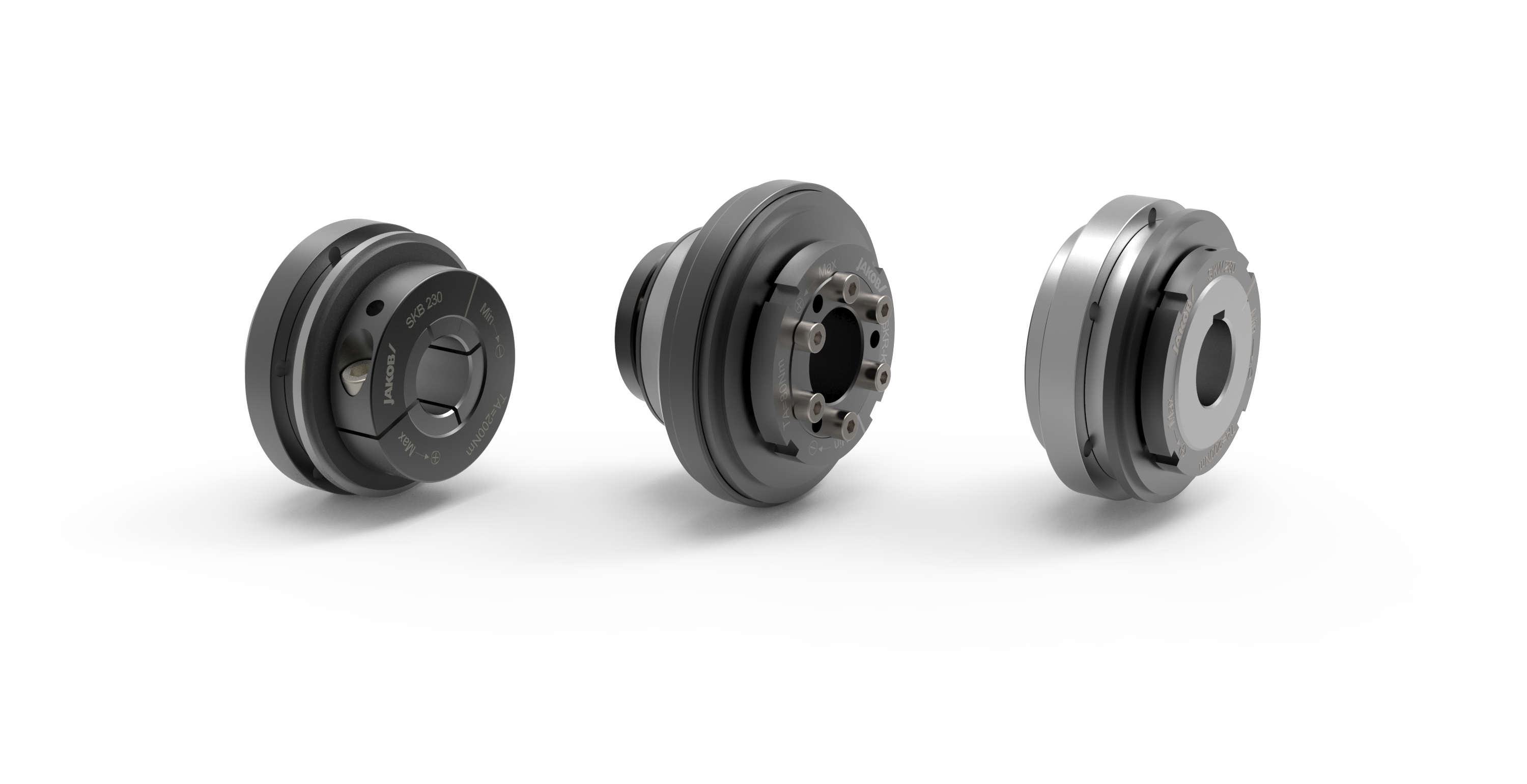

| torque limiters for indirect drives PDF general, modular & adjustment PDF installation and mounting PDF technical information PDF indirect drives PDF catalogue download video clip | ||
   | SKB • simple installation with clamping ring hub • with inegrated ball bearing • for high axial and radial load, extra ordinary syncronism and quiet running • torque range: 0,5 - 2000 Nm • shaft diameter: 5 - 100 mm | Data sheet PDF Specification sheet PDF DXF-file 3D-step-file |
   | SKY • with conical clamping hub • with integrated ball bearing • for high axial and radial load • torque range: 2 to 9000 Nm • shaft diameter: 5 - 80 mm | Data sheet PDF Specification sheet PDF DXF-file 3D-step-file |
   | SKX-L • with radial clamping ring hub for simple installation • with longer bearing journal for integrated slide bearing • with samll centric diameter for attachment of small size pulleys, gear wheels • torque range: 2 - 800 Nm • shaft diameter: 6 - 58 mm | Data sheet PDF Specification sheet PDF DXF-file 3D-step-file |
   | SKG • with conical clamping ring hub • with integrated ball bearing • compact attachment of toothed belt discs, etc. • optimal constructive system integration • torque range: 2 - 550 Nm • shaft diameter: 12 - 44 mm | Data sheet PDF DXF-file 3D-step-file |
   | SKW • easy keyway connection • cost- effective type • with integrated ball bearing for high axial and radial load • torque range: 2 to 9000 Nm • shaft diameter: 6 - 110 mm | Data sheet PDF Specification sheet PDF DXF-file 3D-step-file |
