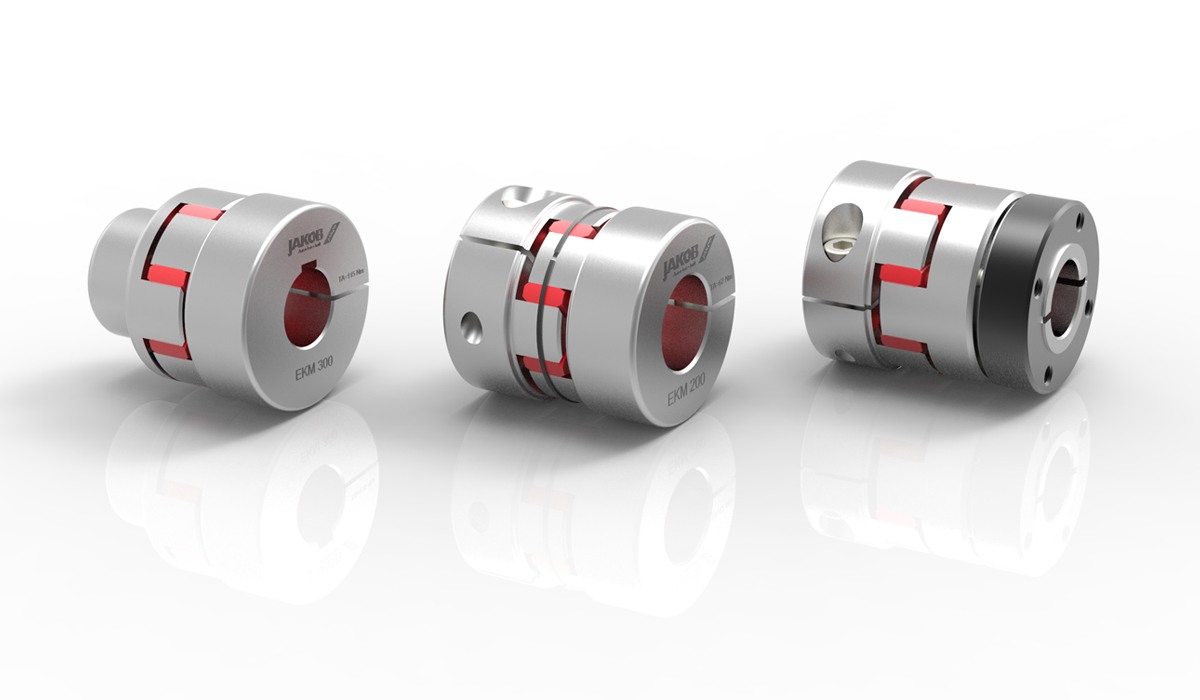

elastomer couplings for special solutions

elastomer couplings for special solutions

more information on requestPDF Installation and mounting instructions
EKM-ESM-A
Combination EKM – ESM-A
• for connection of shafts with huge differences between diameters
• facilitates the assembly of shaft-hub-connections:
1.) ESM-hub from inside
2.) plug-in assembly - elastomer spider
3.) EKM-hub radially from outside
• to achieve fitting of intermediate length
EKM axial stop design
Axial stop design
• by additional snap ring at the periphery
• for taking up and supporting large axial forces
• nevertheless compensation of parallel and angular misalignment
• may also be used for easier mounting
EKS with expanding cone
series EKS with expanding cone
• short design for hollow - shaft - assembly
• 7 sizes from 8 - 700 Nm
• variable conical shaft diameter
• data sheet on request
EKM mit Verzahnung
form-fitted hub version
• clamping hub additional with keyway
• special hubs with internal toothing such as DIN 5480
• low-backlash pluggable oder slide mounting for profile shafts
• as forced rotation due to overload (observe Tmax of metal bellow!)
• optional for all series on request
