CF - Piping Components

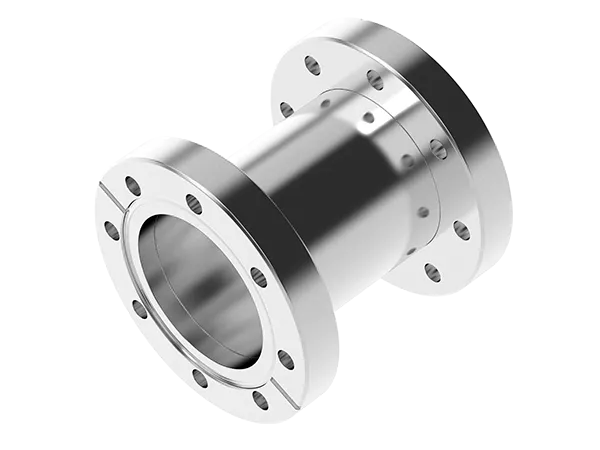

Product photo: Stainless steel pipe with CF flange on both sides, used as an intermediate piece.

CF spacer

With one side rotating flange and one side fixed flange
Flanges with through hole, connection with screw set for CF
Flange connection
Other lengths and pipe dimensions on request
Tightness: ≤1×10^-11 Pa m3/s
Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

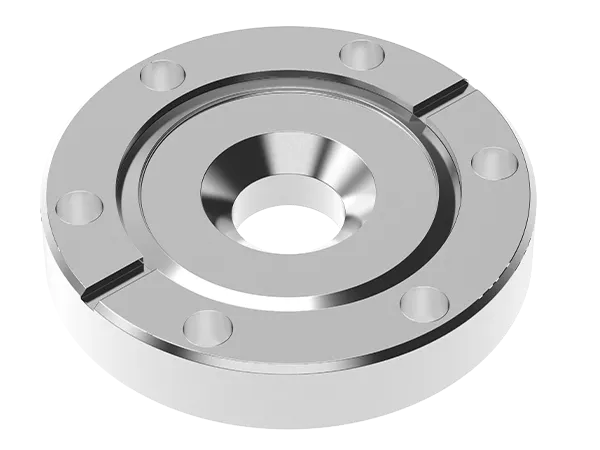

Product photo: CF reducing flange stainless steel, used for connecting flanges of different sizes.

Reducing flange CF-CF

The small flange side has threaded blind holes. Please ensure the correct screw length during installation
Pressure range: ^1×10-12 hPa
Temperature range: -196°C to 300°C
Other dimensions and designs on request (also off-center)
according to DIN ISO 2768-mK

Data sheet

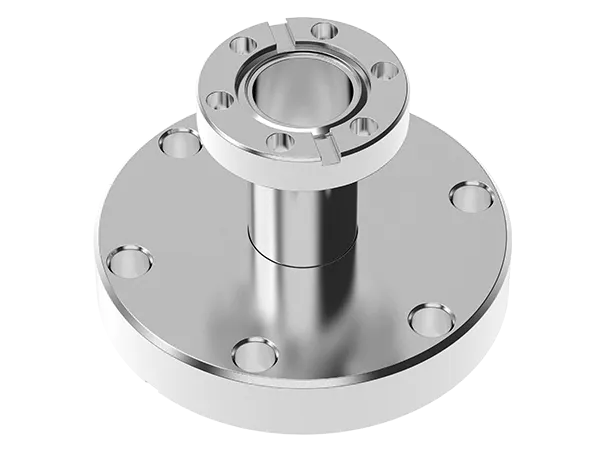

Product photo: CF reducer stainless steel, used for connecting flanges of different sizes.

Reducer CF-CF

Reduced flange side rotatable – Surface of weld seam: polished
Other lengths and pipe dimensions on request
Tightness: ≤1×10^-11 Pa m3/s
Pressure range: ^1×10-12 hPa
Material: 1.4301 – Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

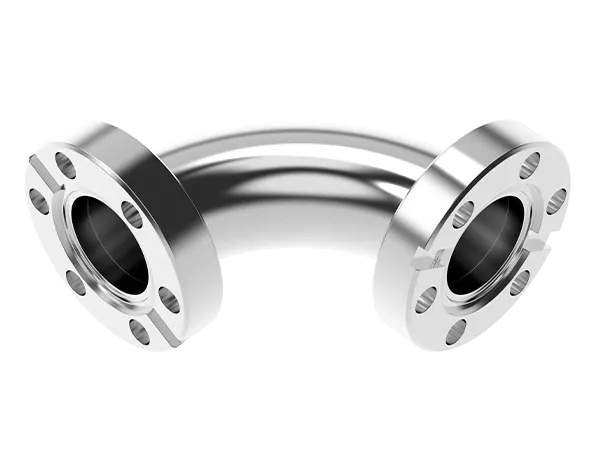

Product photo: A 90° stainless steel pipe bend with CF flanges on both sides.

Elbow 90°

With one side rotating flange and one side fixed flange
Surface of weld seam: polished
Tightness: ≤1×10^-11 Pa m3/s
Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

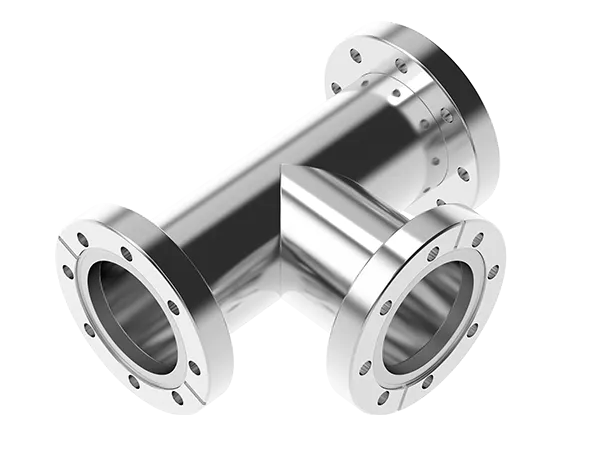

Product photo: A stainless steel T-piece with three CF flanges of the same size for distributing vacuum lines.

T-piece

With two rotary flanges (one rotary flange per axle) and one side
fixed flange
Material: 1.4301 – Pressure range: 1×10^-12 hPa
Surface of weld seam: polished
Tightness: ≤1×10^-11 Pa m3/s
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

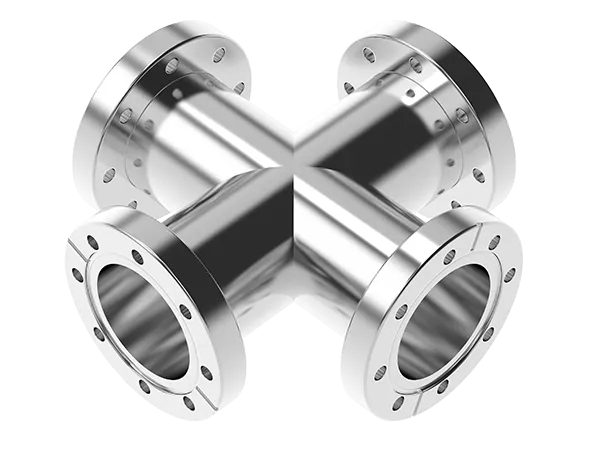

Product photo: Stainless steel cross piece with four CF flanges of the same size, for distributing vacuum lines.

Cross piece quadruple

With two rotating flanges (one rotating flange per axle) and two fixed flanges
Surface of weld seam: polished
Tightness: ≤1×10^-11 Pa m3/s
Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK

Data sheet

Product photo: Stainless steel vacuum manifold piece with six CF flanges.

Cross piece sixfold

With three rotating flanges (one rotating flange per axle) and three fixed flanges
Surface of weld seam: polished
Tightness: ≤1×10^-11 Pa m3/s
Pressure range: ^1×10-12 hPa
Material: 1.4301
Temperature range: -196°C to 300°C
according to DIN ISO 2768-mK
