MDR – power clamping nut • side operation • MDR through-hole thread | Data sheet PDF Specification sheet PDF Operation manual 3D-step-file contact form> |
|

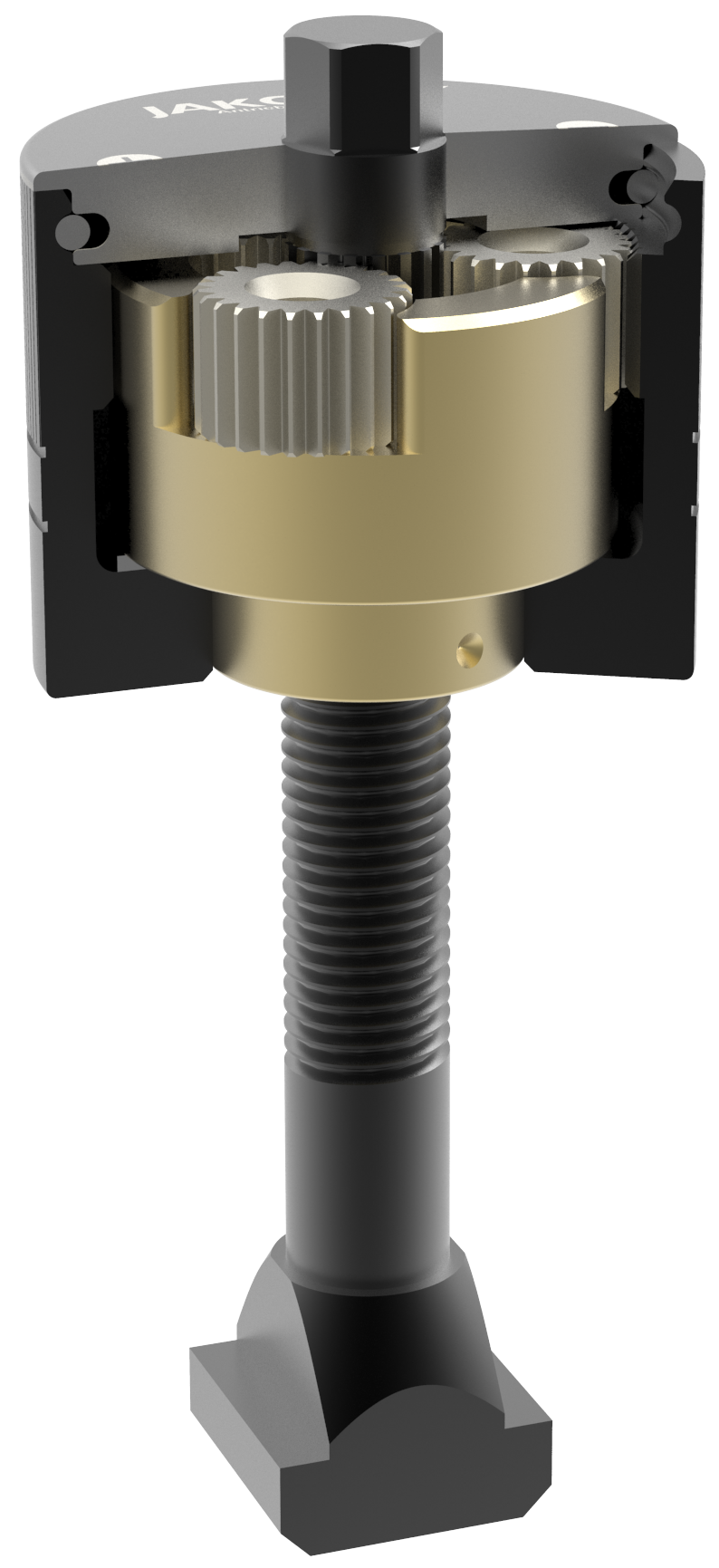

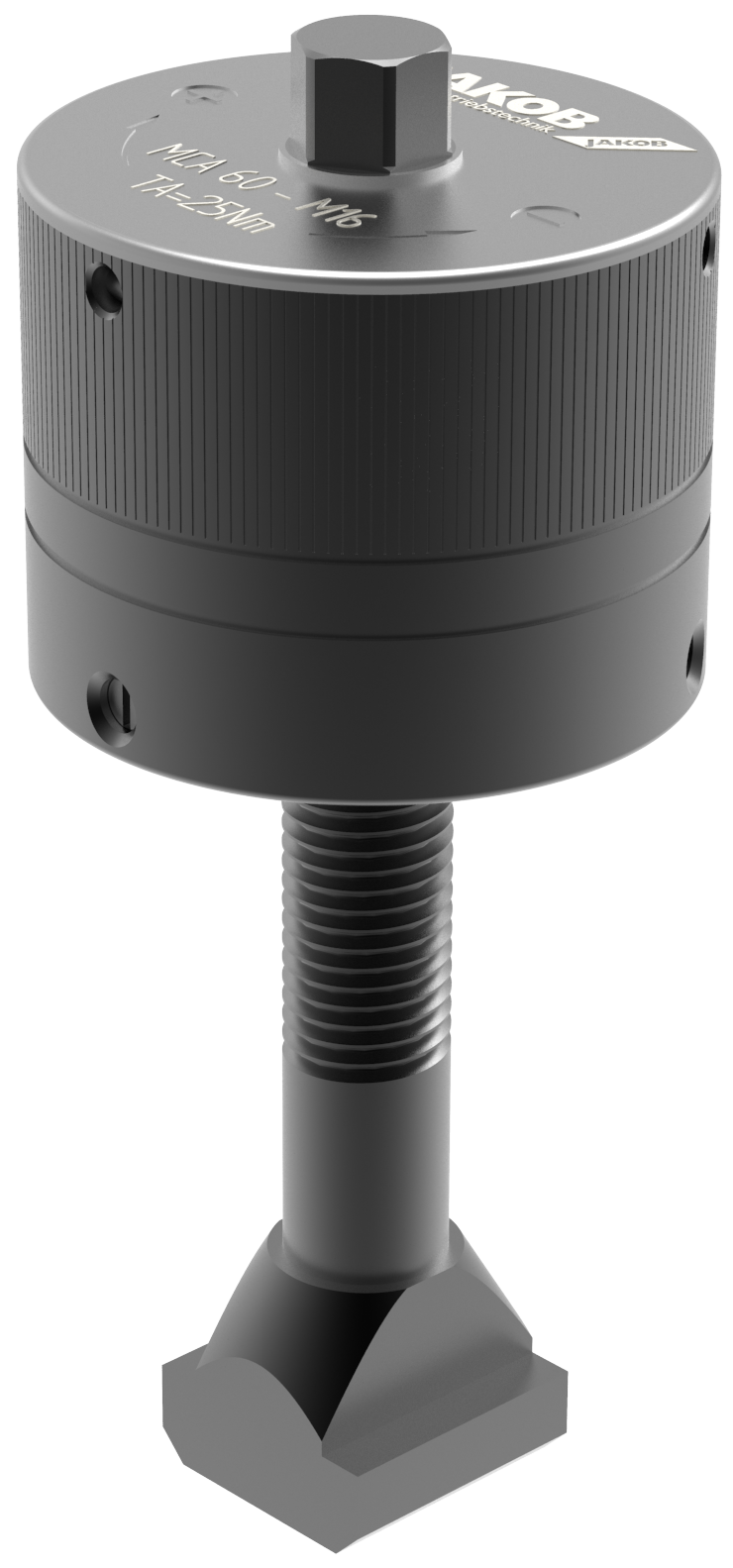

MCA – power clamping nut • high clamping forces – low tightening torques • with bottomed thread – thread protected • centered operation • compact design – up to 400° C | Data sheet PDF PDF general Specification sheet PDF 3D-step-file Operation manual contact form> Video about usage |
|
MCA-DB – power clamping nut • with integrated torque limiter • prevents overloading of the clamping nut • easy operation with a wrench (no torque wrench required) • high clamping forces – low tightening torques • compact design – up to 400° C | Data sheet PDF PDF general PDF Flyer contact form> |
|
MDA – power clamping nut • high clamping forces – low tightening torques • with trough hole thread • for variable clamping edges • unlimited clamping stroke | Data sheet PDF PDF general Specification sheet PDF 3D-step-file Operation manual contact form> Video about usage |
|

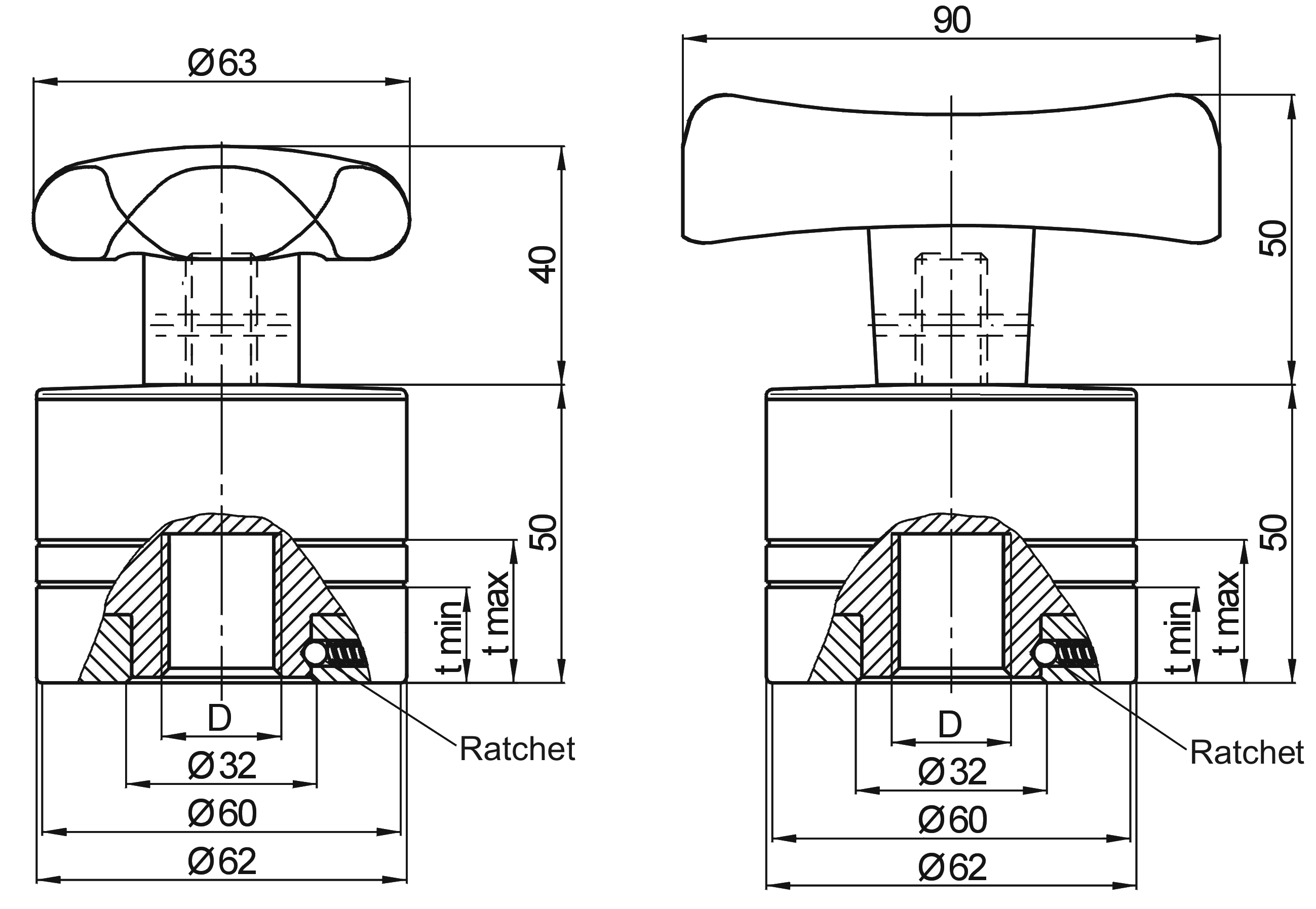

MCA-S / MCA-T – power clamping nut • simple, manual operating with handle • fast feed motion due to automatic change over | Data sheet PDF Specification sheet PDF 3D-step-file contact form> Video about usage |
|
MCG – power clamping nut • function as power clamping screw • with threaded pin M12 up to M64 • centered operation • compact design • 4 sizes up to 200 kN | Data sheet PDF Specification sheet PDF 3D-step-file Operation manual contact form> Video about usage |
|
MCF-VA – Kraftspannmutter Edelstahl • high clamping forces – maximum operational safety • no loss of clamping force with temperature fluctuations • simple operation – accident prevention • low thread friction – minimized wear • robust, compact stainless steel design • high operating speeds and balancing quality | Data sheet PDF Specification sheet PDF 3D-step-file Flyer PDF contact form> |
|
SC – power clamping screw • wedge mechanism as force booster • high clamping force – low tightening torque • high operation safety • simple manual operation | Data sheet PDF Specification sheet PDF 3D-step-file contact form> Video about usage |
How to use – power clamping nuts The usage of power clamping nuts is this simple! |
|
Power clamping nut MDA This is how the power clamping nut MDA works! |
|
Power clamping screw SC This is how the power clamping screw SC works! |
