Stainless steel couplings

stainless steel couplings

configure in coupling finder »
PDF Installation and mounting instructions
PDF technical
EKM-VA
• stainless steel version
• easy to assemble clamping hub
• plug-in, backlash-free and vibration dampening
• torque range: 8 - 500 Nm
• shaft diameter: 8 - 55 mm
Datenblatt PDF
Typenblatt PDF
3D-step-file

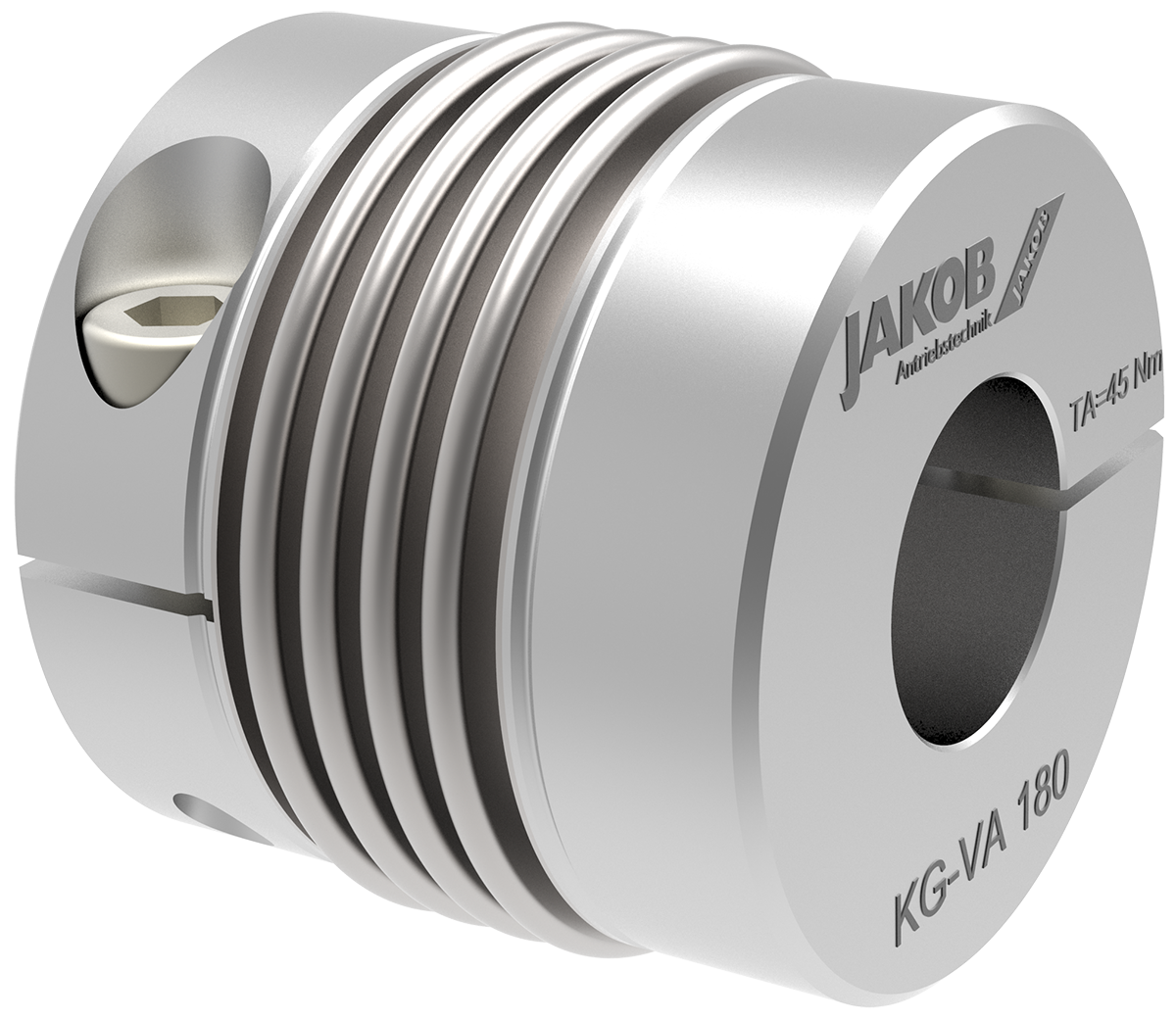

KG-VA
• steel hub - welded design - temperatures up to 350°C
• 2-, 4-, or 6-corrugation bellows - short design - high torsional stiffness
• Torque range: 30 - 1.000 Nm
• Shaft diameter: 10 - 90 mm
• stainless steel
Data sheet PDF
Specification sheet PDF
3D-step-file

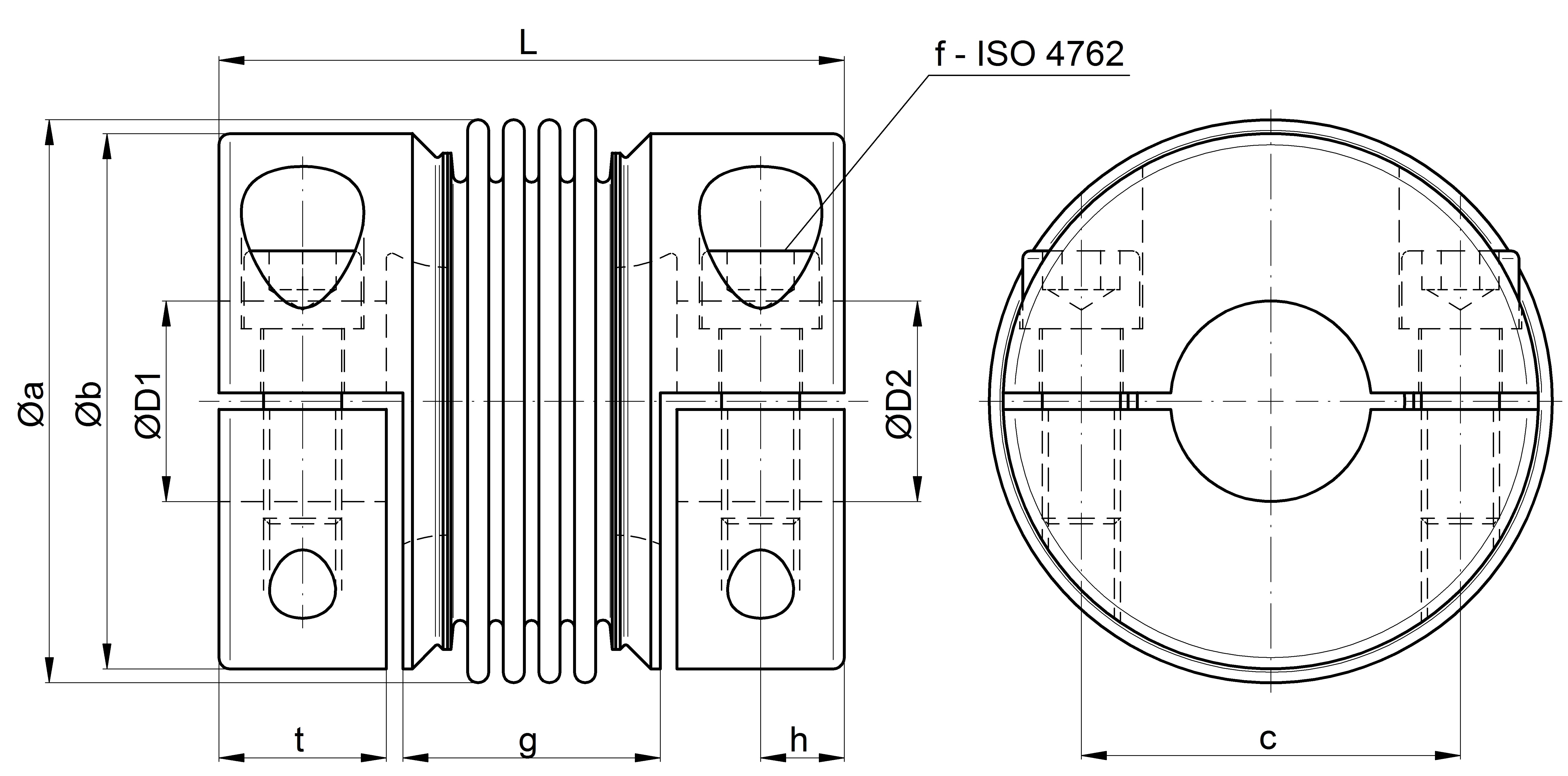

KGH-VA
• simple installation - split-hub design
• wear and maintenance free
• variable length stainless steel version up to 350°C
• Torque range: 10 - 1.200 Nm
• Shaft diameter: 7 - 85 mm
Data sheet PDF
Specification sheet PDF
3D-step-file
MKG - VA - miniature metal bellows coupling
• steel hub - welded design - temperatures up to 350°C
• 4-corrugation bellows - short design - high torsional stiffness
• Torque range: 1,5 - 15 Nm
• Shaft diameter: 3 - 20 mm
• stainless steel
Data sheet PDF
Specification sheet PDF
3D-step-file

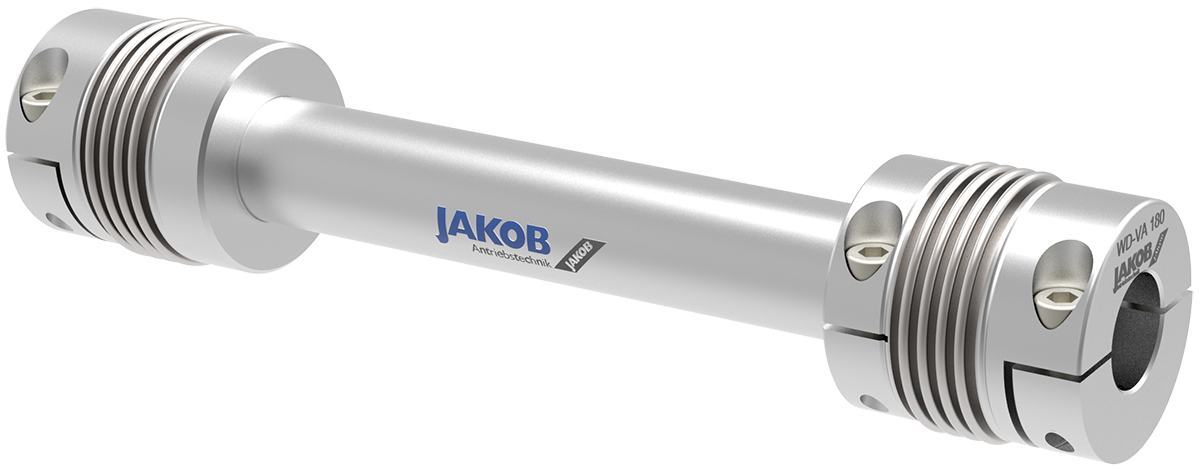

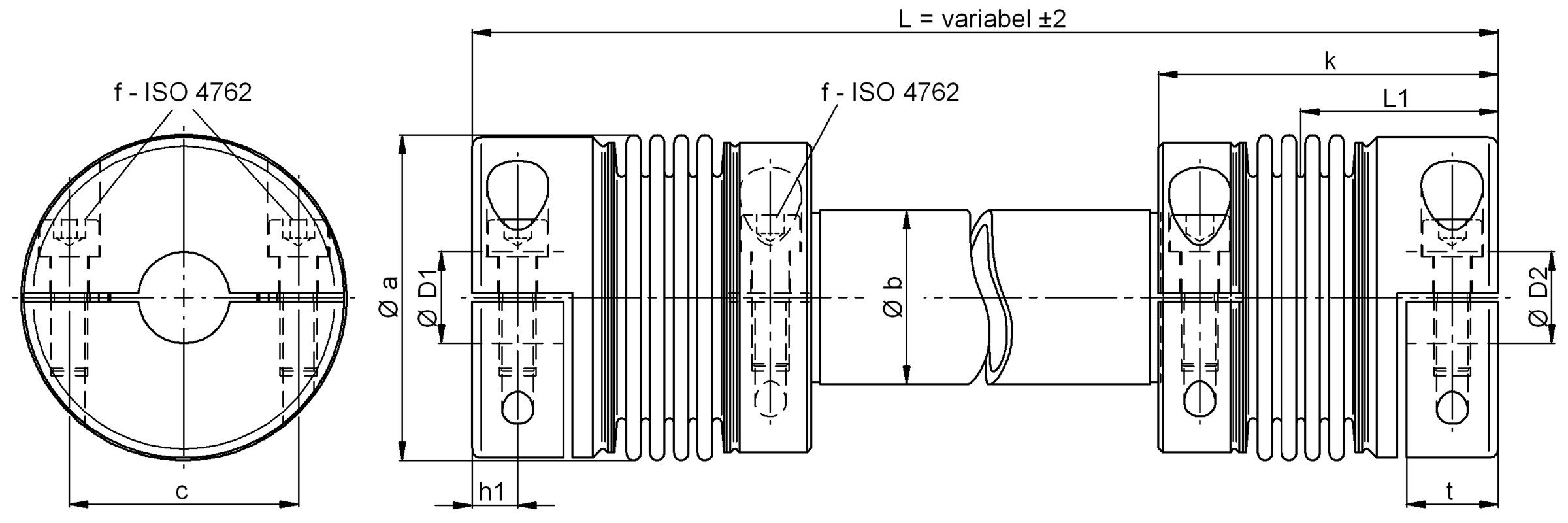

WD-VA - Metal bellows coupling with intermediate pipe
• stainless steel design up to 350°C
• backlash free, exact torque transfer
• variable length up to 3 m
• very easy to fit with splitted hub design
• intermediate pipe supply by customer possible
• Torque range: 10 - 1200 Nm
• Shaft diameter: 7 - 85 mm
• temperature range: -40° C to +350° C
Datasheet PDF
Specification sheet PDF
3D-step-file

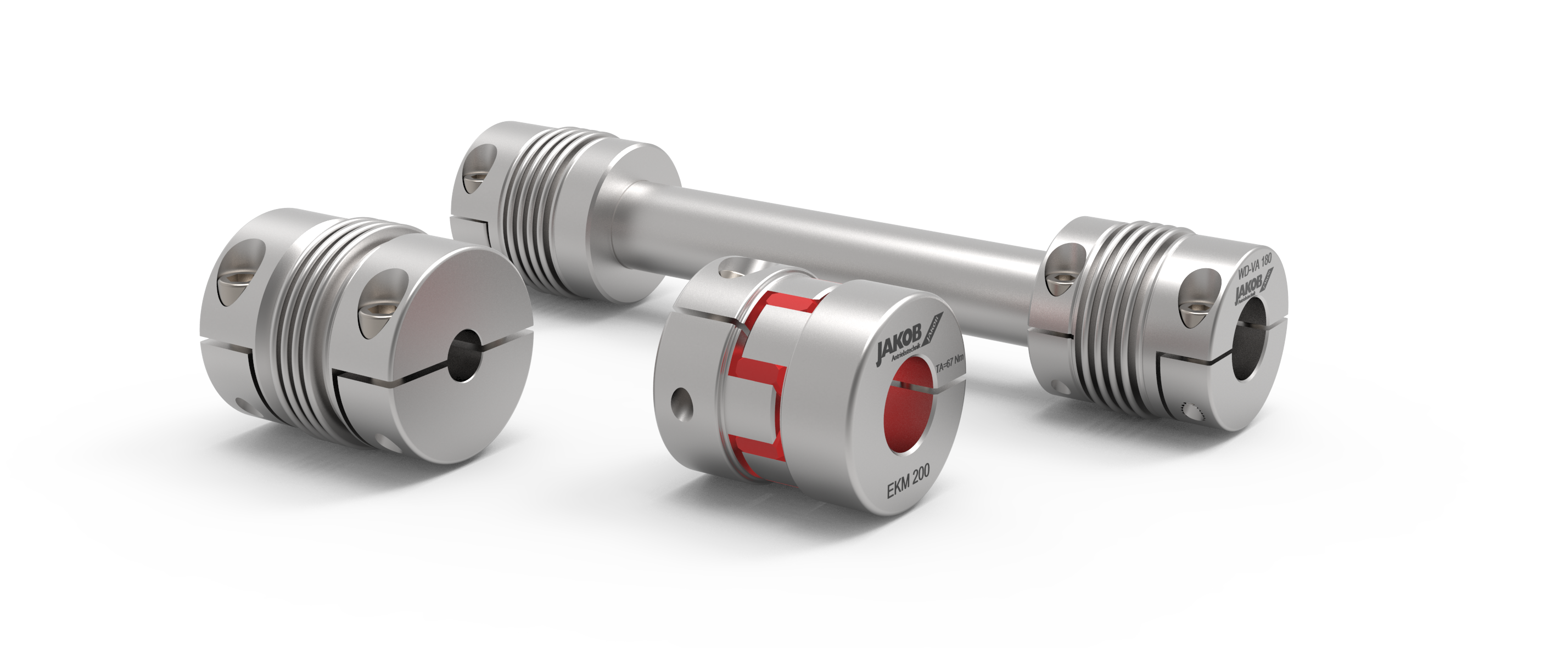

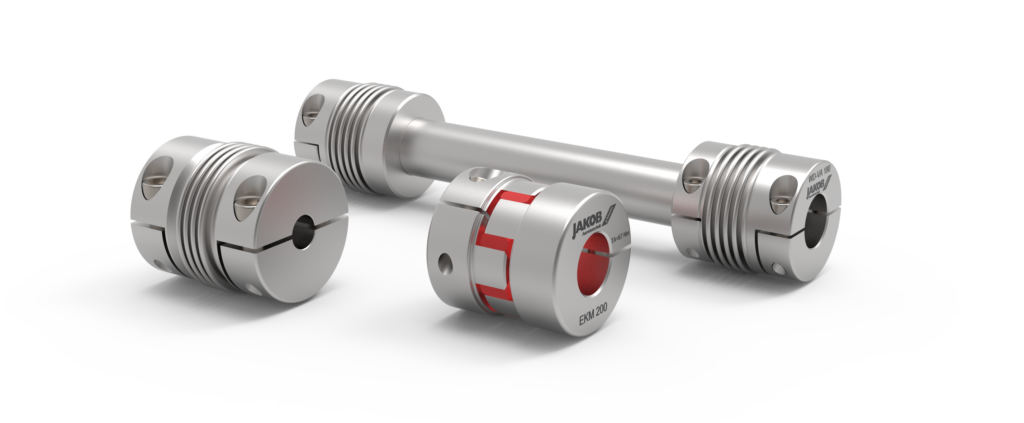

Stainless steel couplings

JAKOB Antriebstechnik offers some series in stainless steel versions. One of the strengths of the material is its resistance to chemicals, such as those used for cleaning in the food industry.
